HIKVISION DS-2CD2047G1-L User Manual

Network Bullet Camera·Quick Start Guide
16
6) Tighten the No.3 adjusting screw.
P: 0° to 360°
3
2
1
T: 0° to 90°
R: 0° to 360°

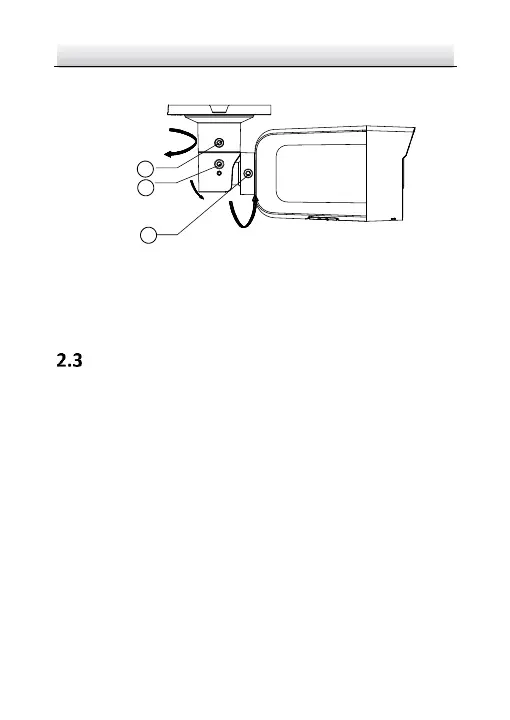

Figure 2-4 3-aix Adjustment
7. (Optional) Install the waterproof jacket. Refer to 2.4 Waterproof
Measures for details.
Wall Mounting with Junction Box
Before you start:
 Both wall mounting and ceiling mounting are suitable for the bullet
camera. Wall mounting will be taken as an example in this section.
And you can take steps of wall mounting as a reference for ceiling
mounting.
 The junction box is not included in the package. You need to
prepare one for this mounting type
Steps:
1. Paste the drill template (supplied) to the desired mounting position
on the wall.
2. Drill the screw holes and the cable hole (optional) in the wall
according to the drill template.
