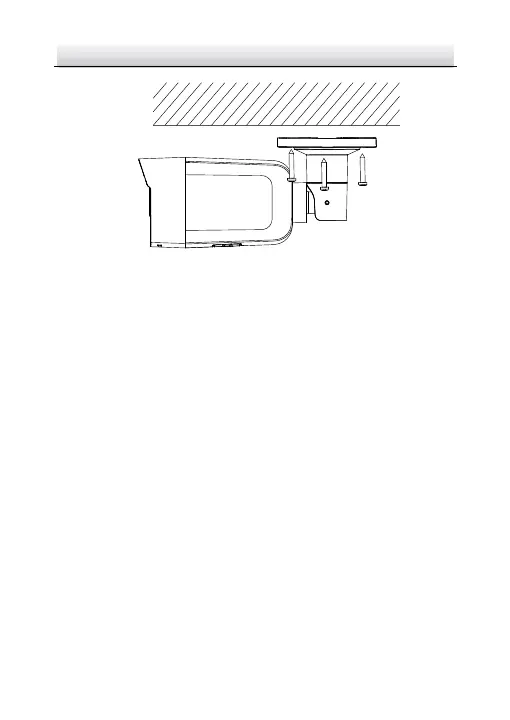

Figure 2-3 Fix the Camera on the Ceiling
Note:
In the supplied screw package, both self-tapping screws, and
expansion bolts are contained.
If the ceiling is cement, expansion bolts are required to fix the
camera. If the ceiling is wooden, self-tapping screws are required.
5. Connect the cables and power on the camera to view live view
image.
6. Adjust the surveillance angle.
1) Loosen the No.1 adjusting screw to adjust the rotation
position [0° to 360°].
2) Tighten the No.1 adjusting screw.
3) Loosen the No.2 adjusting screw to adjust the tilting position
[0° to 90°].
4) Tighten the No. 2 adjusting screw.
5) Loosen the No.3 adjusting screw to adjust the pan position [0°
to 360°].
