HIKVISION DS-2CD2047G1-L User Manual

Network Bullet Camera·Quick Start Guide
14
Steps:
1. Paste the drill template (supplied) to the desired mounting position
on the ceiling.
2. Drill the screw holes in the ceiling according to the supplied drill
template.
Note:
Drill the cable hole, if adopting ceiling outlet to route the cable.

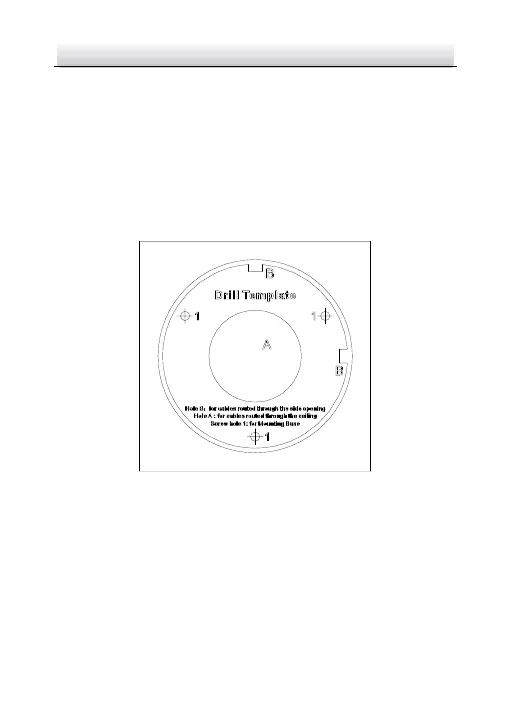

Figure 2-2 Drill Template
3. Route the cables through the cable hole (optional), or the side
opening.
4. Fix the camera on the ceiling with supplied screws.

HIKVISION DS-2CD2047G1-L Specifications

General

Brand	HIKVISION
Model	DS-2CD2047G1-L
Category	Security Camera
Language	English
