1.4.2 Cube Camera II
Camera description:

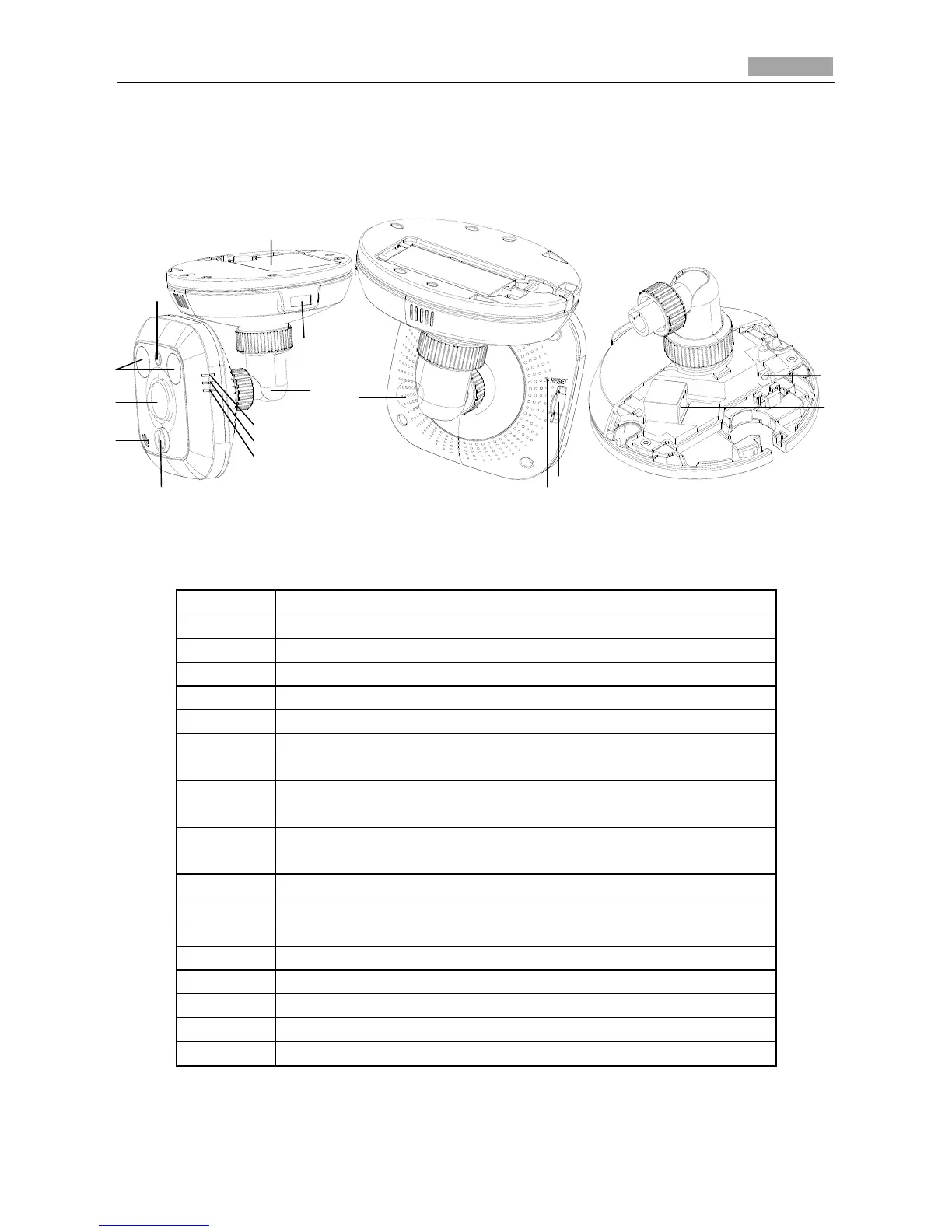

Figure 1-35 Overview
Table 1-16 Description
No.
Description
1
Photosensitive resistance
2
Infrared light
3
PIR sensor
4
Microphone
5
Lens
6
Alarm: Indicator is solid red when the camera is armed with PIR and
access control and it is solid blue when the camera is unarmed.
7
Indicator flashes blue when movement or presence is detected in
its field of view.
8
Link: Indicator flashes orange when network connection is
functioning properly.
9
Tri-axial adjustment bracket
10
USB interface
11
Battery
12
Speaker
13
RESET: Reset button
14
Micro SD card slot
15
Power supply interface
16
10M / 100M self-adaptive Ethernet interface & PoE
Note:
After the powering on of the camera, pressing and holding the RESET button for about 10 seconds
1
2
3
4
6
7
8
5
9
10
11
12
13
14
16
15
