1.5 Mini Dome Camera Interface Description

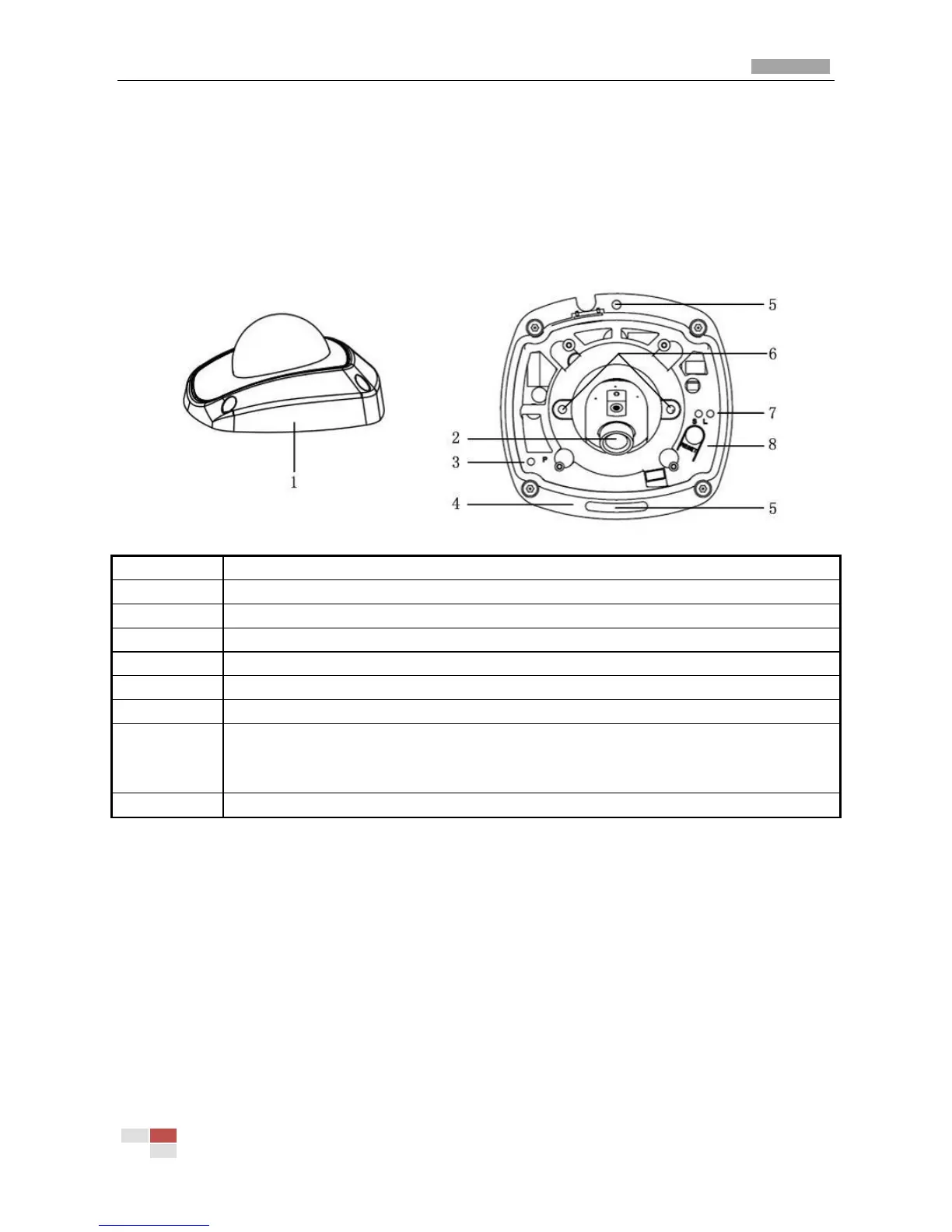

Figure 1.5.1
Serial NO.
Description
1
Back box
2
Lens
3
P: Power LED indicator, It turns solid red when power is applied to the unit.
4
Bottom board
5
Bottom board set screw hole
6
Lens set screw
7
S & L: Network status LED indicator.
When the network is connected, the “S” LED turns solid orange, while the “L” LED flickers in
green.
8
RESET: Reset all parameters to factory default settings.
