1.2 Dome Camera Interface Description
1.2.1 Dome Camera Ⅰ

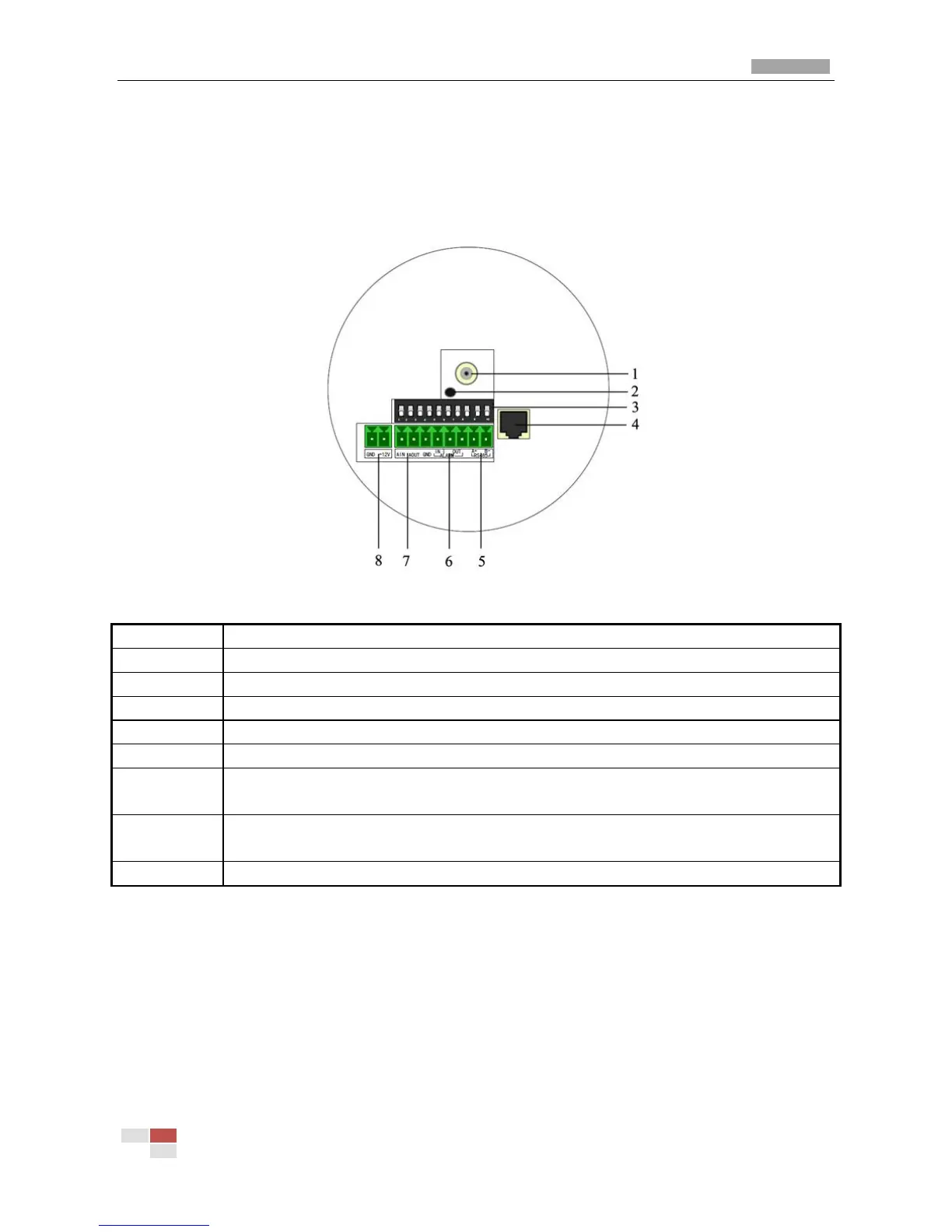

Figure 1.2.1
Serial NO.
Description
1
Video output interface
2
PWR: Power LED indicator
3
Dial switch
4
10M/100M self-adaptive Ethernet interface
5
D+, D-: RS-485 interface
6
Alarm IN: Alarm input interface
Alarm OUT: Alarm output interface
7
AIN: Audio input interface
AOUT: Audio output interface
8
Power supply
