HIKVISION DS-2CD8133F-EW

Quick Guide of Network Camera
© Hikvision Digital Technology Co., Ltd. All Rights Reserved.
3
1.1.3 Box Camera Ⅲ

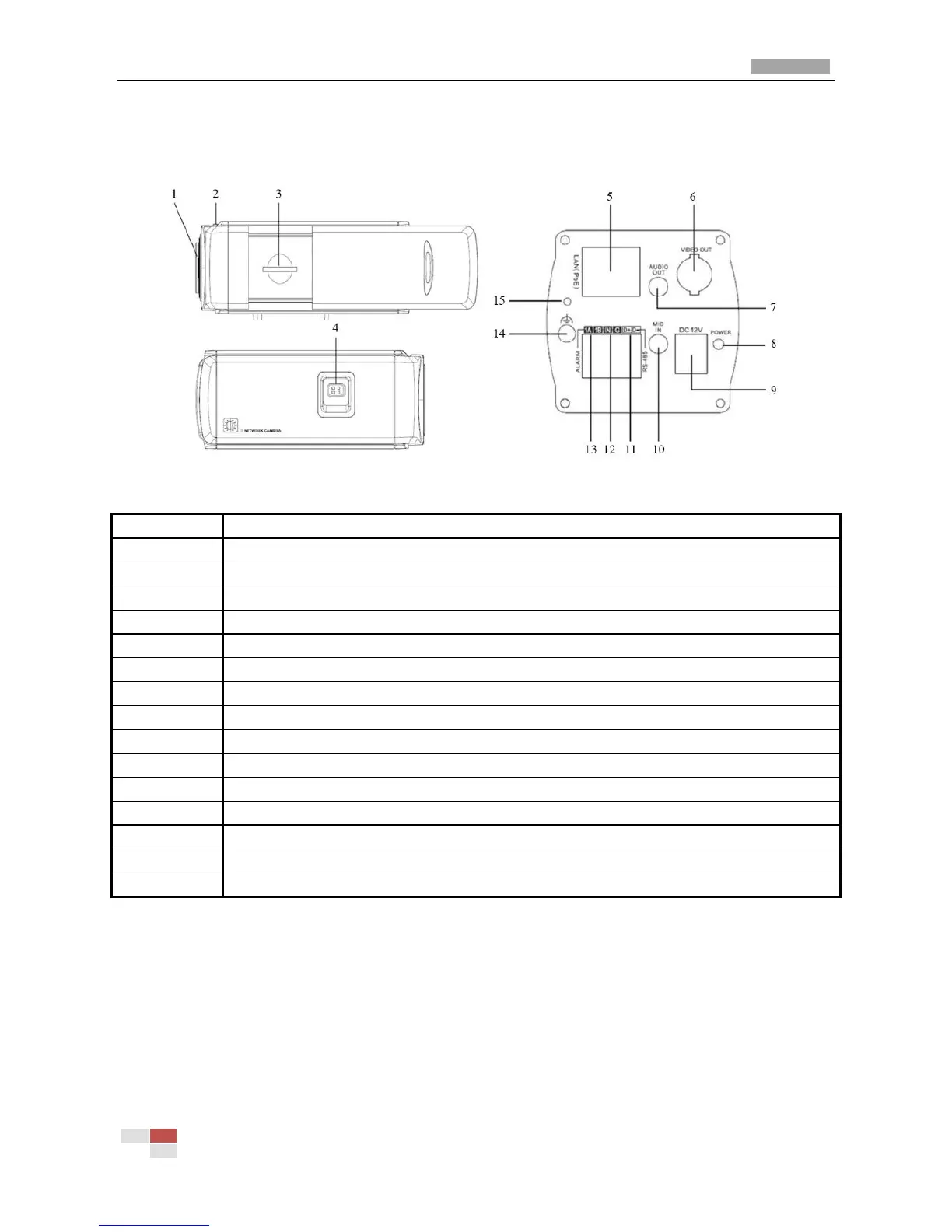

Figure 1.1.3
Serial NO.
Description
1
Lens mount
2
Back Focus Ring
3
SD: SD card slot
4
Auto iris interface
5
10M/100M self-adaptive Ethernet interface
6
VIDEO OUT: Video output interface
7
AUDIO OUT: Audio output interface
8
PWR: Power LED indicator
9
Power supply
10
MIC IN: Audio input interface
11
D+, D-: RS-485 interface
12
IN, G: Alarm input interface
13
1A, 1B: Alarm output interface
14
Ground
15
RESET: Reset the camera
