2 Installation
Before you start
Make sure that the device in the package is in good
condition and all the assembly parts are included.
Make sure that all the related equipment is power-off
during the installation.
Check the specification of the products for the
installation environment.
Check whether the power supply is matched with
your power output to avoid the damage.
Make sure the wall is strong enough to withstand
three times the weight of the camera, and the
mount.
If the wall is cement, insert expansion bolts before
installing the camera. If the wall is wooden, use
self-tapping screws to secure the camera.
If the product does not function properly, contact
your dealer or the nearest service center. Do NOT
disassemble the camera for repair or maintenance by
yourself.
2.1 Installation of the Camera
2.1.1 Ceiling/Wall Mounting
Steps:
1. Paste the drill template (supplied) to the place
where you want to install the camera.
2. Drill the screw holes on the ceiling/wall according to
the drill template.

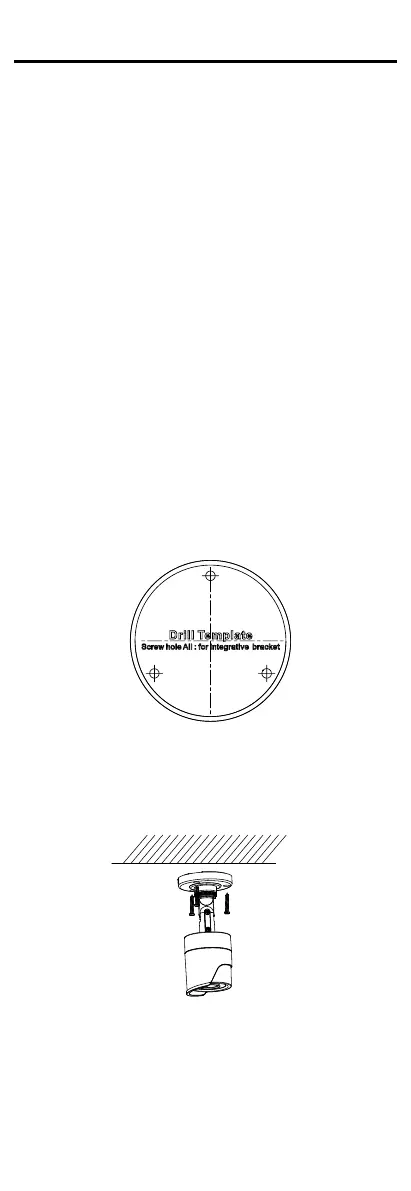

Figure 2-1 The Drill Template
3. You have two ways to install the camera according
to different types of wall/ceiling.
1) Install the camera to the wooden ceiling/wall
with three PA4 × 25 screws.
Figure 2-2 Install the Camera to the Wooden Ceiling
2) Install the expansion bolts to the cement
ceiling at first, then secure the camera with
three PA4 × 25 screws.
To Next Page
