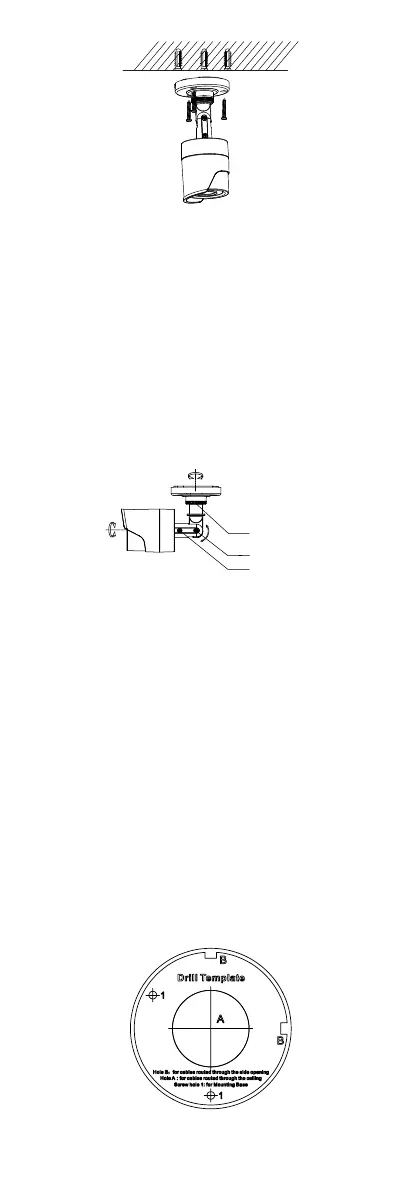

Figure 2-3 Install the Camera to the Cement Ceiling
Note:
The supplied screw package contains self-tapping
screws, and expansion bolts.
4. Route the cables through the cable hole, or the side
opening.
5. Connect the corresponding power cord, and video
cable.
6. Power on the camera to check whether the image
on the monitor is gotten from the optimum angle. If
not, adjust the camera according to the figure below
to get an optimum angle.
Figure 2-4 3-axis Adjustment
1). Loosen the P screw to adjust the pan position [0°
to 360°]. Tighten the screw after completing the
adjustment.
2). Loosen the T screw to adjust the tilt position [0°
to 180°]. Tighten the screw after completing the
adjustment.
3). Loosen the R screw and rotate the camera [0° to
360°]. Tighten the screw after completing the
adjustment.
2.1.2 Ceiling/Wall Mounting with Junction Box
Before you start:
You need to purchase a junction box in advance.
Steps:
1. Paste the drill template (supplied) to the place
where you want to install the camera.
2. Drill screw holes on the ceiling/wall according to the
drill template.
Figure 2-5 The Drill Template
