1. Use the hex wrench to loosen the screw, and
remove the mounting base from the camera body,
shown as the figure 2.4.

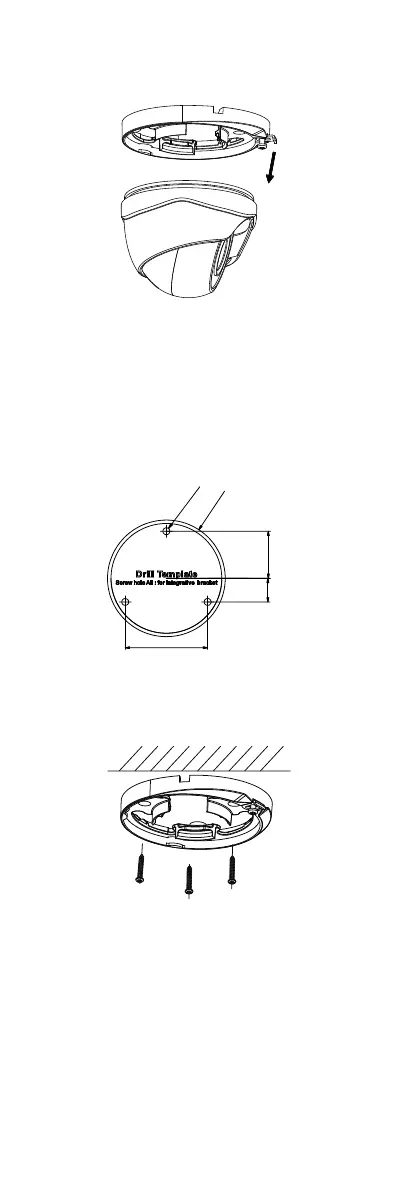

Figure 2. 4 Disassemble the Camera
2. Attach the drill template (supplied) to the place
where you want to install the camera, and then drill
the screw holes according to the drill template, and
the cable hole (optional) on the ceiling.
Note:
Cable hole is required when adopting ceiling outlet to
route the cable.
Figure 2. 5 Drill Template
3. Attach the mounting base to the ceiling and secure
them with supplied screws
Figure 2. 6 Attach the Mounting Base to the Ceiling
Note:
In the supplied screw package, both self-tapping
screws and expansion blots are contained.
If the wall is cement, expansion blots are required
to fix the camera. If the wall is wooden,
self-tapping screws are required.
4. Route the cables through the cable hole (optional),
or the side opening.
5. Pull out the clip plate and secure the camera with
the trim ring to the mounting base.
6. Push the clip plate in and tighten the screw to
secure the camera with the mounting base.
