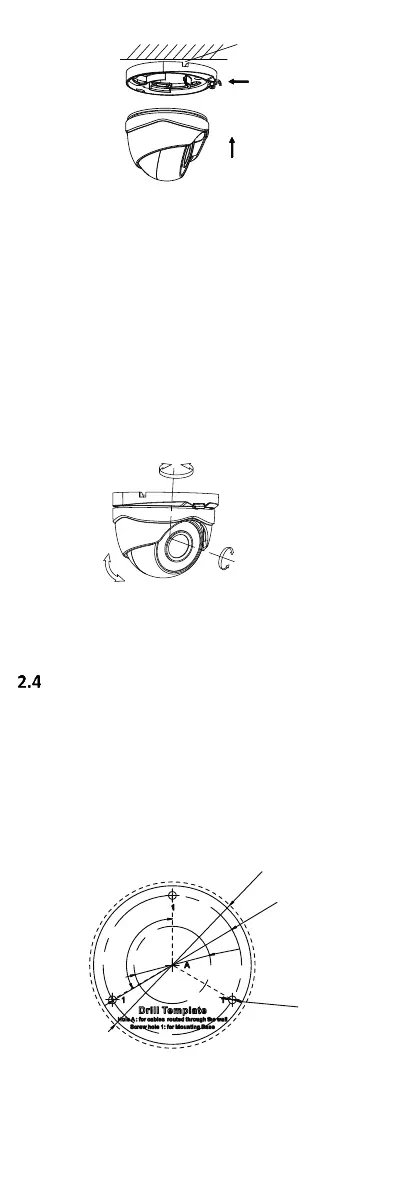

Figure 2. 7 Secure the Camera with Mounting Base
7. Connect the corresponding cables, such as power
cord, and video cable.
8. Power on the camera to check whether the image
on the monitor is gotten from the optimum angle. If
not, adjust the camera according to the figure below
to get an optimum angle.
1). Hold the camera body and rotate the enclosure
to adjust the pan position [0° to 360°].
2). Move the camera body up and down to adjust
the tilt position [0° to 75°].
3). Rotate the camera body to adjust the rotation
position [0° to 360°].
Pan Positioning Range：
0°to 360°
Rotation Positioning Range：
0°to 360°
Tilt Positioning Range：
0°to 75°
Figure 2. 8 3-axis Adjustment
Installation of Type III Camera
Steps:
1. Attach the drill template (supplied) to the place
where you want to install the camera, and then drill
the screw holes and the cable hole (optional)
according to the drill template on the ceiling.
Note:
Cable hole is required when adopting ceiling outlet to
route the cable.
Φ
86
Φ
72
Φ
40
3 - Φ 4
120
°
Figure 2. 9 Drill Template
2. Attach the mounting base to the ceiling and secure
them with supplied screws
To Next Page
