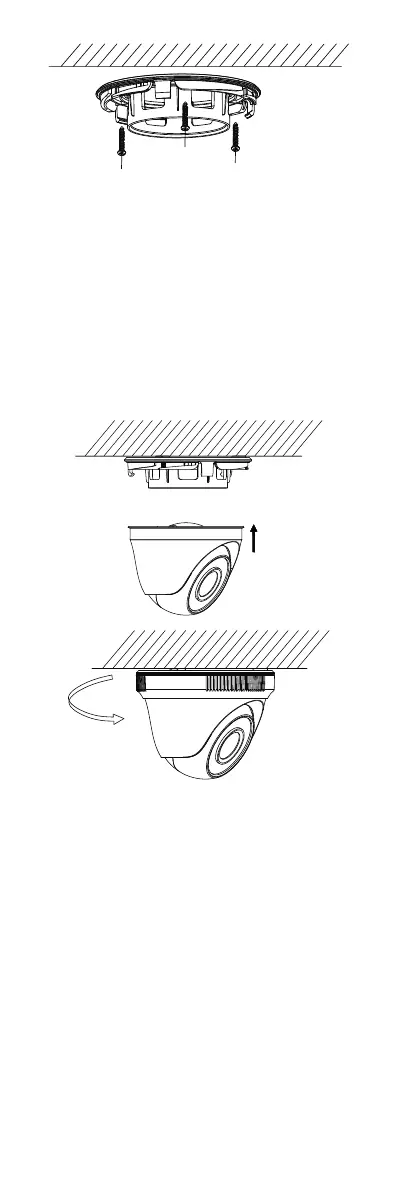

Figure 2. 10 Attach the Mounting Base to the Ceiling
Note:
In the supplied screw package, both self-tapping
screws and expansion blots are contained.
If the wall is cement, expansion blots are required
to fix the camera. If the wall is wooden,
self-tapping screws are required.
3. Route the cables through the cable hole (optional),
or the side opening.
4. Align the camera with the mounting base, secure
the camera with the mounting base, and fix the trim
ring to the camera.
Figure 2. 11 Secure the Camera with Mounting Base
5. Connect the corresponding cables, such as power
cord, and video cable.
6. Power on the camera to check whether the image
on the monitor is gotten from the optimum angle. If
not, adjust the camera according to the figure below
to get an optimum angle.
1). Hold the camera body and rotate the enclosure
to adjust the pan position [0° to 360°].
2). Move the camera body up and down to adjust
the tilt position [0° to 75°].
3). Rotate the camera body to adjust the rotation
position [0° to 360°].
