Note:
The supplied screw package contains self-tapping
screws, and expansion bolts.
For cement wall/ceiling, expansion bolts are
required to fix the camera. For wooden wall/ceiling,
self-tapping screws are required.
6. Route the cables through the cable hole, or the side
opening.
7. Align the camera with the mounting base, and
tighten the screws to secure the camera on the
mounting base.
Figure 2-4 Secure the Camera with Mounting Base
8. Connect the corresponding cables, such as power
cord, and video cable.
9. Power on the camera to check whether the image
on the monitor is gotten from the optimum angle. If
not, adjust the camera according to the figure below
to get an optimum angle.
Tilt Position
[0°to 75°]
Pan Position
[0° to 360°]
Rotation Position
[0°to 360°]
Figure 2-5 3-axis Adjustment
1). Hold the camera body and rotate the enclosure
to adjust the pan position [0° to 360°].
2). Move the camera body up and down to adjust
the tilt position [0° to 75°].
3). Rotate the camera body to adjust the rotation
position [0° to 360°].
2.2 Ceiling Mounting of Type II Camera
Before you start:
Both wall mounting and ceiling mounting are suitable
for the turret camera. Ceiling mounting will be taken as
an example in this section. You can take steps of ceiling
mounting as the reference, when adopting the wall
mounting.
Steps:
1. Disassemble the turret camera by rotating the
camera to align the notch to the clip plate, as shown
in the Figure 2-6.

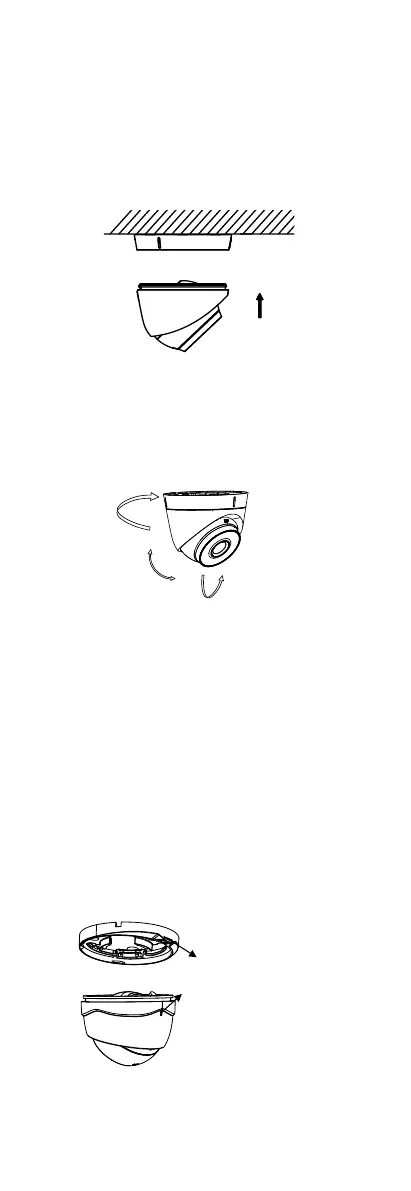

Figure 2-6 Disassemble the Camera
2. Pry the mounting base to remove the mounting
base from the camera body.
3. Paste the drill template (supplied) to the place
where you want to install the camera.
