4. Drill the screw holes according to the drill template,
and the cable hole (optional) on the ceiling.

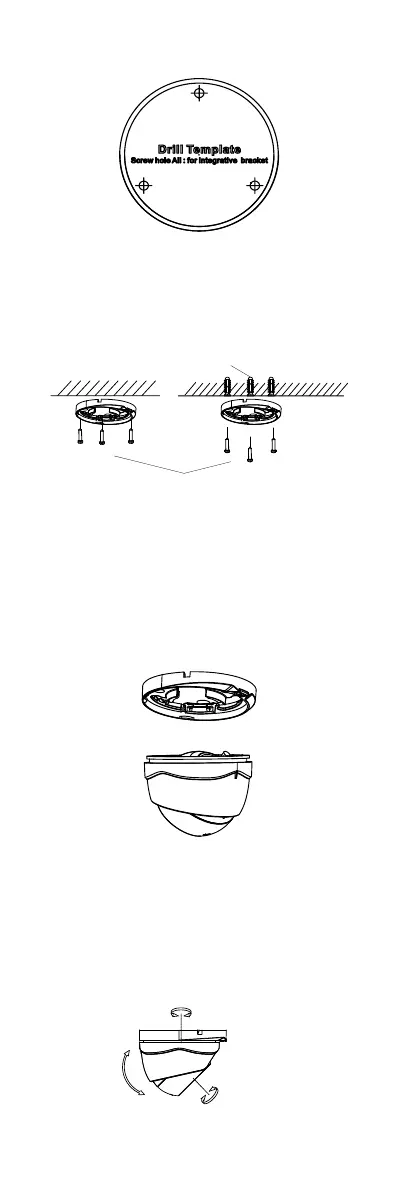

Figure 2-7 Drill Template
Note:
Drill the cable hole in the center of the drill template,
when adopting the ceiling outlet to route the cable.
5. Secure the mounting base to the ceiling with the
supplied screws.
Figure 2-8 Fix the Mounting Base to the Ceiling
Note:
The supplied screw package contains self-tapping
screws, and expansion bolts.
For cement wall/ceiling, expansion bolts are
required to fix the camera. For wooden
wall/ceiling, self-tapping screws are required.
6. Route the cables through the cable hole, or the side
opening.
7. Secure the camera on the mounting base.
Figure 2-9 Secure the Camera
8. Connect the corresponding cables, such as power
cord, and video cable.
9. Power on the camera to check whether the image
on the monitor is gotten from the optimum angle. If
not, adjust the camera according to the figure below
to get an optimum angle.
