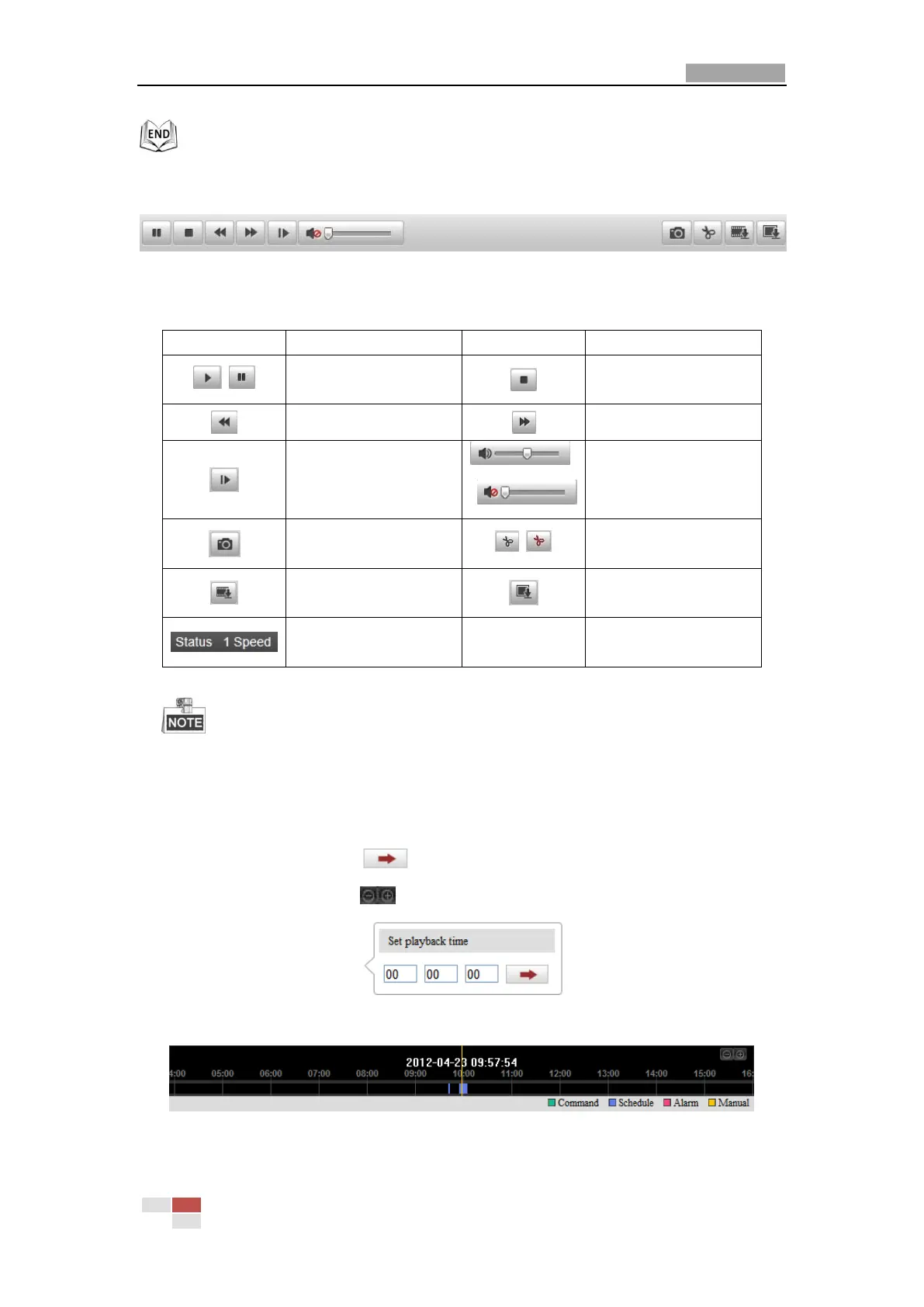

The toolbar on the bottom of Playback interface can be used to control playing
process.
Figure 9-3 Playback Toolbar
Table 9-1 Description of the buttons
Button
Operation
Button
Operation
/
Play/Pause
Stop
Speed down
Speed up
Playback by frame
/
Audio on and adjust
volume/Mute
Capture a picture
/
Start/Stop clipping
video files
Download video files
Download captured
pictures
Display playback
status
You can choose the file paths locally for downloaded playback video files and
pictures in Local Configuration interface. Please refer to Section 7.1
Configuring Local Parameters for details.
Drag the progress bar with the mouse to locate the exact playback point. You can
also input the time and click to locate the playback point in the Set playback
time field. You can also click to zoom out/in the progress bar.
Figure 9-4 Set Playback Time
Figure 9-5 Progress Bar
The different colors of the video on the progress bar stand for the different video

HIKVISION DS-2DE3304W-DE Specifications

General

IK code	IK10
Form factor	Dome
Mounting type	Ceiling/wall
Product color	White
International Protection (IP) code	IP66
Type	IP security camera
Certification	FCC, CE, UL, IEC/EN 61000, IEC/EN 55022, IEC/EN 55024, IEC /EN60950-1
Languages support	BUL, CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, EST, FIN, FRE, GRE, HRV, HUN, ITA, JPN, KOR, LAT, LIT, NOR, POL, POR, RUM, RUS, SER, SLK, SLV, SWE, THA, TUR, VIE
Alarm input/output	Yes
Number of languages	32
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Sustainability certificates	RoHS
Operating temperature (T-T)	-30 - 65 °C
Operating relative humidity (H-H)	0 - 90 %
AC input voltage	36 - 57 V
DC output current	1 A
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	8 W
Number of cameras	1
Wi-Fi	No
Number of users	32 user(s)
Cabling technology	10/100Base-T(X)
Supported network protocols	IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Number of simultaneous live view channels	20 channels
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	128 GB
Total megapixels	3 MP
Maximum resolution	2048 x 1536 pixels
Video compression formats	H.264, H.264+, H.265, H.265+, M-JPEG
Noise reduction technology	3D noise reduction
Pan range	0 - 350 °
Pan speed	60 °/sec
White balance	ATW, Auto, Daylight, Indoor, Manual, Outdoor, Sodium lamp
Tilt angle range	0 - 90 °
Camera shutter speed	1/1 - 1/10000 s
Minimum illumination	0.01 lx
Signal-to-Noise Ratio (SNR)	52 dB
Digital zoom	16 x
Optical zoom	4 x
Focal length range	2.8 - 12 mm
Maximum aperture number	2.7
Minimum aperture number	1.6
Sensor type	CMOS
Optical sensor size	1/2.8 \

Weight and Dimensions

Height	107.2 mm
Weight	950 g
Diameter	140.7 mm
