User Manual of Network Mini PTZ Camera
© Hikvision
77
5. Click .
There are up to 4 text overlays configurable.

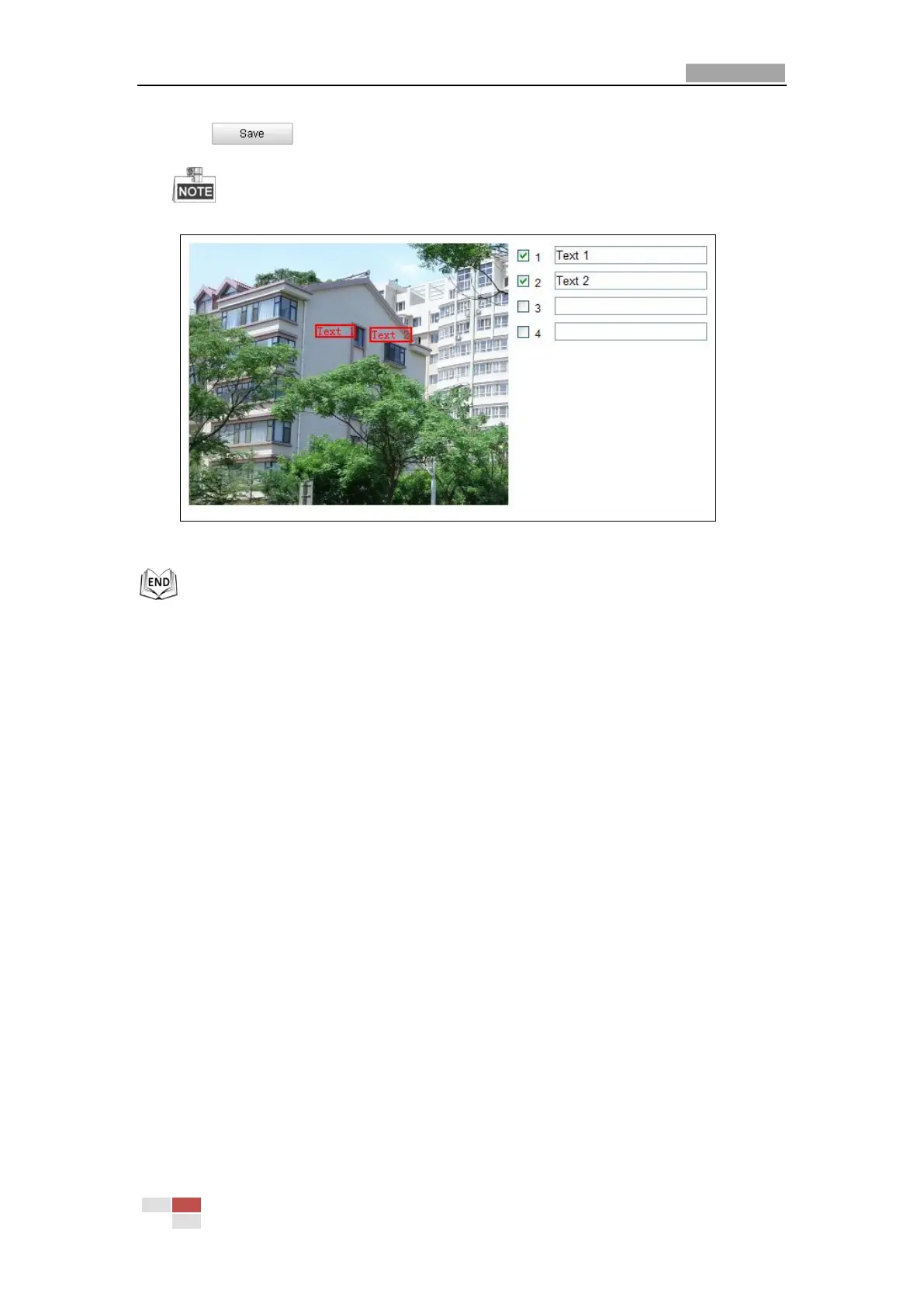

Figure 7-37 Text Overlay Settings
7.6 Configuring and Handling Alarms
Purpose:
This section explains how to configure the network PTZ camera to respond to alarm
events, including motion detection, external alarm input, video loss, tamper-proof
and exception. These events can trigger the alarm actions, such as Notify Surveillance
Center, Send Email, Trigger Alarm Output, etc.
For example, when an external alarm is triggered, the network PTZ camera sends a
notification to an e-mail address.
7.6.1 Configuring Motion Detection
Purpose:
Motion detection is a feature which can trigger alarm actions and actions of
recording videos when the motion occurred in the surveillance scene.
Steps:
1. Enter the motion detection setting interface:
Configuration > Advanced Configuration> Events > Motion Detection
2. Check the checkbox of the Enable Motion Detection to enable this function.
You can check the Enable Dynamic Analysis for Motion checkbox if you want the

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-2DE3304W-DE and is the answer not in the manual?

HIKVISION DS-2DE3304W-DE Specifications

General IconGeneral
IK codeIK10
Form factorDome
Mounting typeCeiling/wall
Product colorWhite
International Protection (IP) codeIP66
TypeIP security camera
CertificationFCC, CE, UL, IEC/EN 61000, IEC/EN 55022, IEC/EN 55024, IEC /EN60950-1
Languages supportBUL, CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, EST, FIN, FRE, GRE, HRV, HUN, ITA, JPN, KOR, LAT, LIT, NOR, POL, POR, RUM, RUS, SER, SLK, SLV, SWE, THA, TUR, VIE
Alarm input/outputYes
Number of languages32
Placement supportedIndoor & outdoor
Connectivity technologyWired
Sustainability certificatesRoHS
Operating temperature (T-T)-30 - 65 °C
Operating relative humidity (H-H)0 - 90 %
AC input voltage36 - 57 V
DC output current1 A
DC output voltage12
Power source typeDC, PoE
Power consumption (max)8 W
Number of cameras1
Wi-FiNo
Number of users32 user(s)
Cabling technology10/100Base-T(X)
Supported network protocolsIPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Number of simultaneous live view channels20 channels
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size128 GB
Total megapixels3 MP
Maximum resolution2048 x 1536 pixels
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Noise reduction technology3D noise reduction
Pan range0 - 350 °
Pan speed60 °/sec
White balanceATW, Auto, Daylight, Indoor, Manual, Outdoor, Sodium lamp
Tilt angle range0 - 90 °
Camera shutter speed1/1 - 1/10000 s
Minimum illumination0.01 lx
Signal-to-Noise Ratio (SNR)52 dB
Digital zoom16 x
Optical zoom4 x
Focal length range2.8 - 12 mm
Maximum aperture number2.7
Minimum aperture number1.6
Sensor typeCMOS
Optical sensor size1/2.8 \
Weight and Dimensions IconWeight and Dimensions
Height107.2 mm
Weight950 g
Diameter140.7 mm
