contents are about how to configure the different types of linkage method.

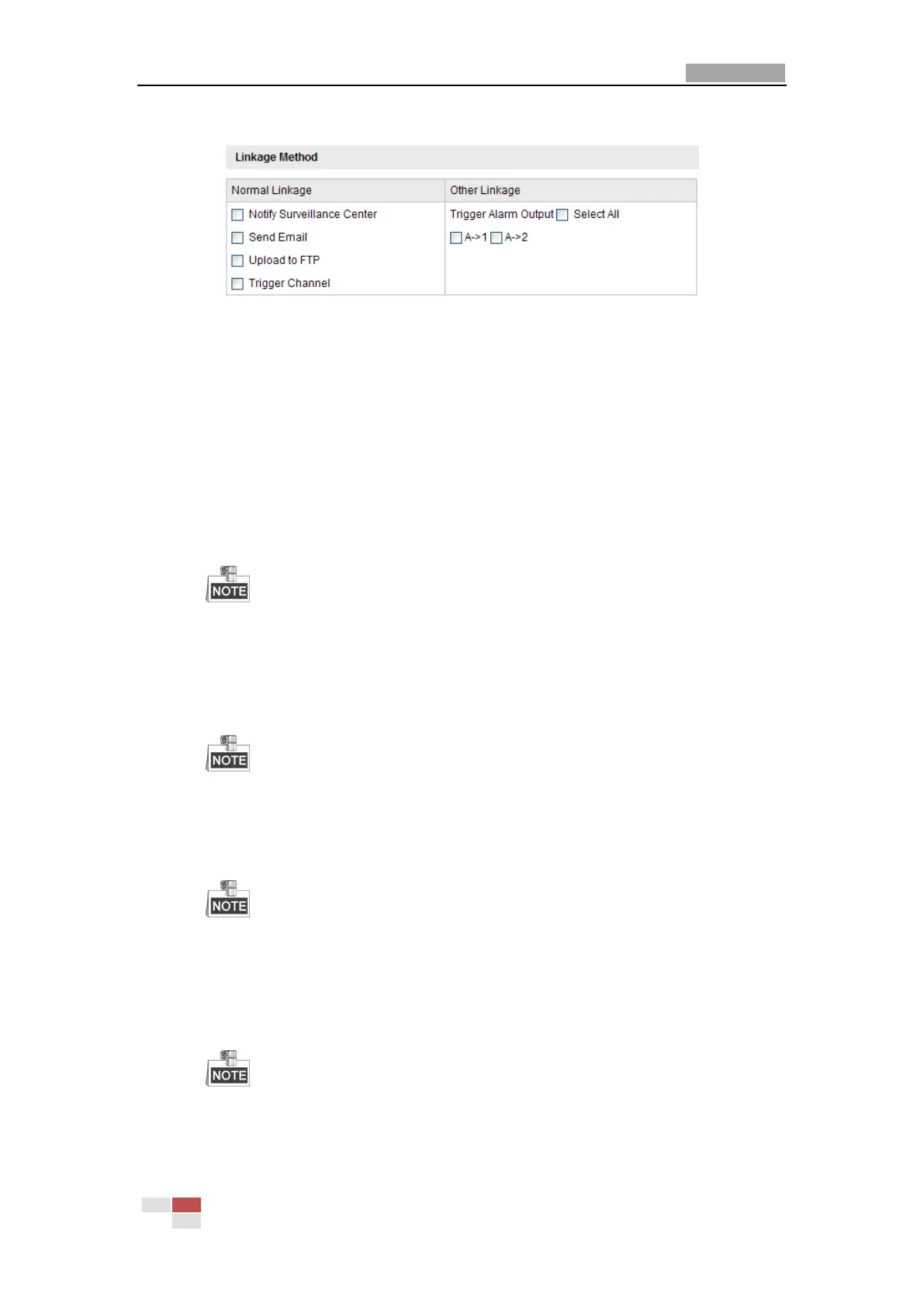

Figure 7-42 Linkage Method
Check the checkbox to select the linkage method. Notify surveillance center,
send email, upload to FTP, trigger channel and trigger alarm output are
selectable.
 Notify Surveillance Center
Send an exception or alarm signal to remote management software when
an event occurs.
 Send Email
Send an email with alarm information to a user or users when an event
occurs.
To send the Email when an event occurs, you need to refer to Section
7.3.10 Configuring Email Settings to set the Email parameters.
 Upload to FTP
Capture the image when an alarm is triggered and upload the picture to a
FTP server.
You need a FTP server and set FTP parameters first. Refer to Section
7.3.7 Configuring FTP Settings for setting FTP parameters.
 Trigger Channel
Record a video when an event occurs.
You have to set the recording schedule to realize this function. Please
refer to Section 8.3 Configuring Recording Schedule for settings the
recording schedule.
 Trigger Alarm Output
Trigger one or more external alarm outputs when an event occurs.
To trigger an alarm output when an event occurs, please refer to
Section 7.6.4 Configuring Alarm Output to set the alarm output
parameters.

HIKVISION DS-2DE3304W-DE Specifications

General

IK code	IK10
Form factor	Dome
Mounting type	Ceiling/wall
Product color	White
International Protection (IP) code	IP66
Type	IP security camera
Certification	FCC, CE, UL, IEC/EN 61000, IEC/EN 55022, IEC/EN 55024, IEC /EN60950-1
Languages support	BUL, CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, EST, FIN, FRE, GRE, HRV, HUN, ITA, JPN, KOR, LAT, LIT, NOR, POL, POR, RUM, RUS, SER, SLK, SLV, SWE, THA, TUR, VIE
Alarm input/output	Yes
Number of languages	32
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Sustainability certificates	RoHS
Operating temperature (T-T)	-30 - 65 °C
Operating relative humidity (H-H)	0 - 90 %
AC input voltage	36 - 57 V
DC output current	1 A
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	8 W
Number of cameras	1
Wi-Fi	No
Number of users	32 user(s)
Cabling technology	10/100Base-T(X)
Supported network protocols	IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Number of simultaneous live view channels	20 channels
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	128 GB
Total megapixels	3 MP
Maximum resolution	2048 x 1536 pixels
Video compression formats	H.264, H.264+, H.265, H.265+, M-JPEG
Noise reduction technology	3D noise reduction
Pan range	0 - 350 °
Pan speed	60 °/sec
White balance	ATW, Auto, Daylight, Indoor, Manual, Outdoor, Sodium lamp
Tilt angle range	0 - 90 °
Camera shutter speed	1/1 - 1/10000 s
Minimum illumination	0.01 lx
Signal-to-Noise Ratio (SNR)	52 dB
Digital zoom	16 x
Optical zoom	4 x
Focal length range	2.8 - 12 mm
Maximum aperture number	2.7
Minimum aperture number	1.6
Sensor type	CMOS
Optical sensor size	1/2.8 \

Weight and Dimensions

Height	107.2 mm
Weight	950 g
Diameter	140.7 mm
