Network Speed Dome Installation Manual
23

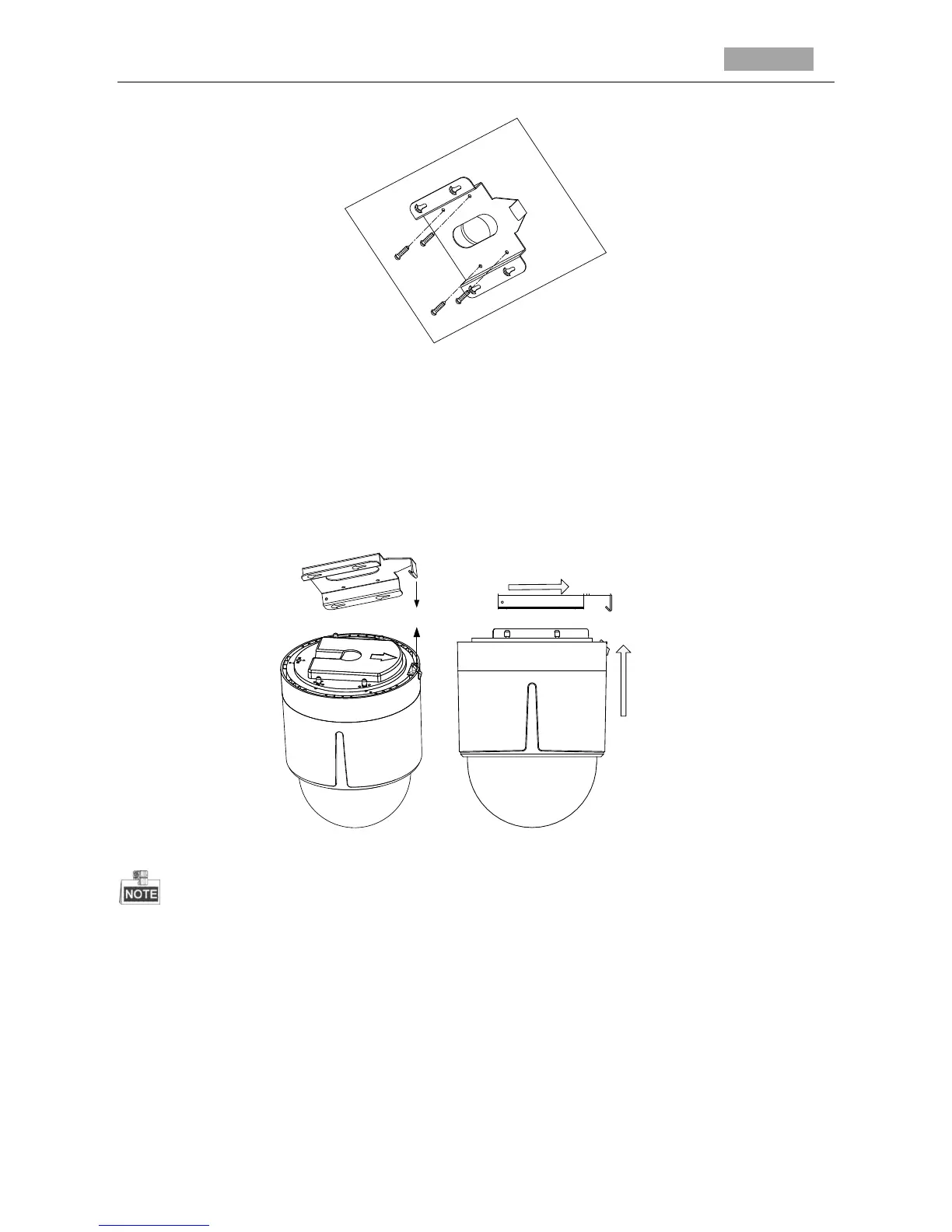

Figure 2-14 Secure the Mounting Base
7. Install the speed dome to the mounting base.
1) Route the cables for the speed dome. Align the bottom of the speed dome with the
mounting base.
2) Line up the direction of arrow with the spring end of the mounting base.
3) Push the speed dome upwards and then forwards in the direction of arrow. When the speed
dome is placed in position, the spring will automatically snap into the lock clip firmly. Refer
to the Figure 2-15.
Line up
Push Forwards
Push Upwards
Figure 2-15 Attach the Back Box to the Mounting Base
 Please remove the protective film on the lower dome after the installation is finished.
 Do not touch the bubble of the lower dome directly by hand. The image blurs otherwise.

HIKVISION DS-2DF8223I-AEL Specifications

General

Type	IP security camera
PTZ control	Yes
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Maximum operating distance	1500 m
Form factor	Dome
Product color	Black, White
International Protection (IP) code	IP66
Sensor type	CMOS
Optical sensor size	1/1.8 \
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	240p, 480p, 720p, 960p, 1080p
Video formats supported	H.264, M-JPEG, MPEG4
Analog signal format system	NTSC, PAL
Pan range	0 - 360 °
Pan speed	160 °/sec
White balance	ATW, Auto, Daylight, Indoor, Manual, Outdoor, Sodium lamp
Tilt angle range	-20 - 90 °
Minimum illumination	0.002 lx
Field of view (FOV) angle	59.8 °
Optical zoom	16 x
Focal length range	- mm
Maximum aperture number	3.4
Signal-to-Noise Ratio (SNR)	55 dB
Headphone outputs	1
Built-in HDD	-
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	128 GB
DC output voltage	24
Power source type	PoE
Power consumption (typical)	60 W
Operating temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	0 - 90 %
Ethernet interface type	Fast Ethernet

Weight and Dimensions

Length	365.2 mm
Weight	8000 g
Diameter	266.6 mm
