Network Speed Dome Installation Manual
22
2.3.2 Wiring For Ceiling Mounting Applications
The cables of dome can be routed either from the top or the side of the back box, as shown in
Figure 2-12. For the cables routed from the top of the back box, it is required to drill a cable hole in
the ceiling.

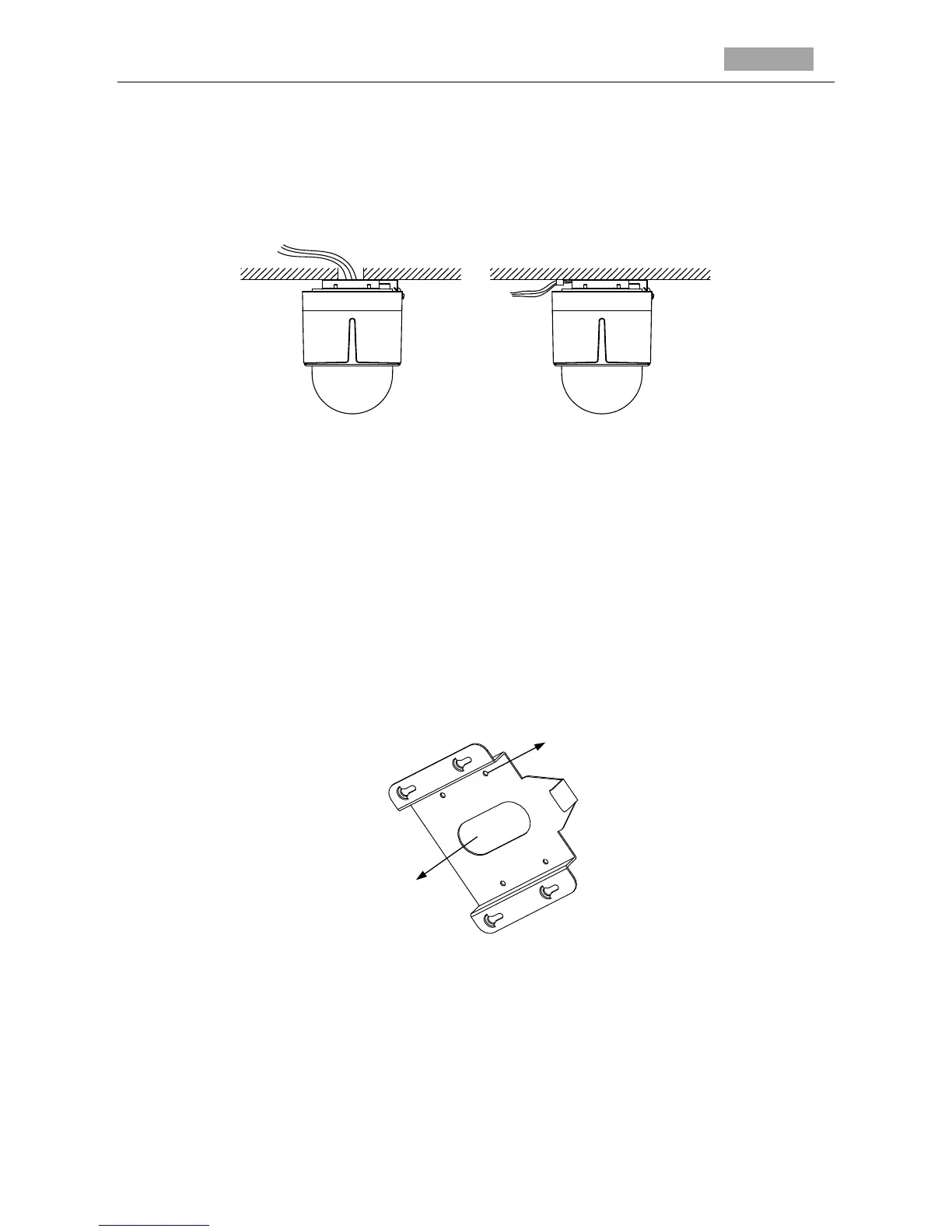

Figure 2-12 Cabling for Ceiling Mounting
2.3.3 Ceiling Mounting
Steps:
1. Rotate the lower dome counterclockwise to separate it from the back box. Refer to the Figure
2-5.
2. Remove the protective lens cover, foam and sticker from the dome drive.
3. Attach lower dome to the back box, and rotate clockwise to secure it.
4. Use the mounting base as a template to mark four screw holes onto the ceiling.
5. If you route cables from the top of the back box, mark the cable hole on the ceiling and drill a
hole.
Screw Holes
Cable Holes
Figure 2-13 Mark the Screw Positions
6. Secure the mounting base to the ceiling with set screws.
If the speed dome is installed to the wooden wall, use the self-tapping screws to secure the
mounting base.
If the dome is installed to the cement wall, drill three Φ5 mounting holes onto the wall
according to the position of the holes, and then insert the cement screws into the holes
and finally use self-tapping screws to secure the mounting base to the wall.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-2DF8223I-AEL and is the answer not in the manual?

HIKVISION DS-2DF8223I-AEL Specifications

General IconGeneral
TypeIP security camera
PTZ controlYes
Placement supportedIndoor & outdoor
Connectivity technologyWired
Maximum operating distance1500 m
Form factorDome
Product colorBlack, White
International Protection (IP) codeIP66
Sensor typeCMOS
Optical sensor size1/1.8 \
Total megapixels2 MP
Maximum resolution1920 x 1080 pixels
Supported video modes240p, 480p, 720p, 960p, 1080p
Video formats supportedH.264, M-JPEG, MPEG4
Analog signal format systemNTSC, PAL
Pan range0 - 360 °
Pan speed160 °/sec
White balanceATW, Auto, Daylight, Indoor, Manual, Outdoor, Sodium lamp
Tilt angle range-20 - 90 °
Minimum illumination0.002 lx
Field of view (FOV) angle59.8 °
Optical zoom16 x
Focal length range- mm
Maximum aperture number3.4
Signal-to-Noise Ratio (SNR)55 dB
Headphone outputs1
Built-in HDD-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size128 GB
DC output voltage24
Power source typePoE
Power consumption (typical)60 W
Operating temperature (T-T)-40 - 65 °C
Operating relative humidity (H-H)0 - 90 %
Ethernet interface typeFast Ethernet
Weight and Dimensions IconWeight and Dimensions
Length365.2 mm
Weight8000 g
Diameter266.6 mm
