1.1.5 Connecting the Cables
Before you start:
Please make sure the power of the dome is off before connecting the cables.
The cable interfaces of speed dome are shown in the Figure 1-33. Please refer to the following
figure for connecting the cables.
1
2
3
4
5
6
7

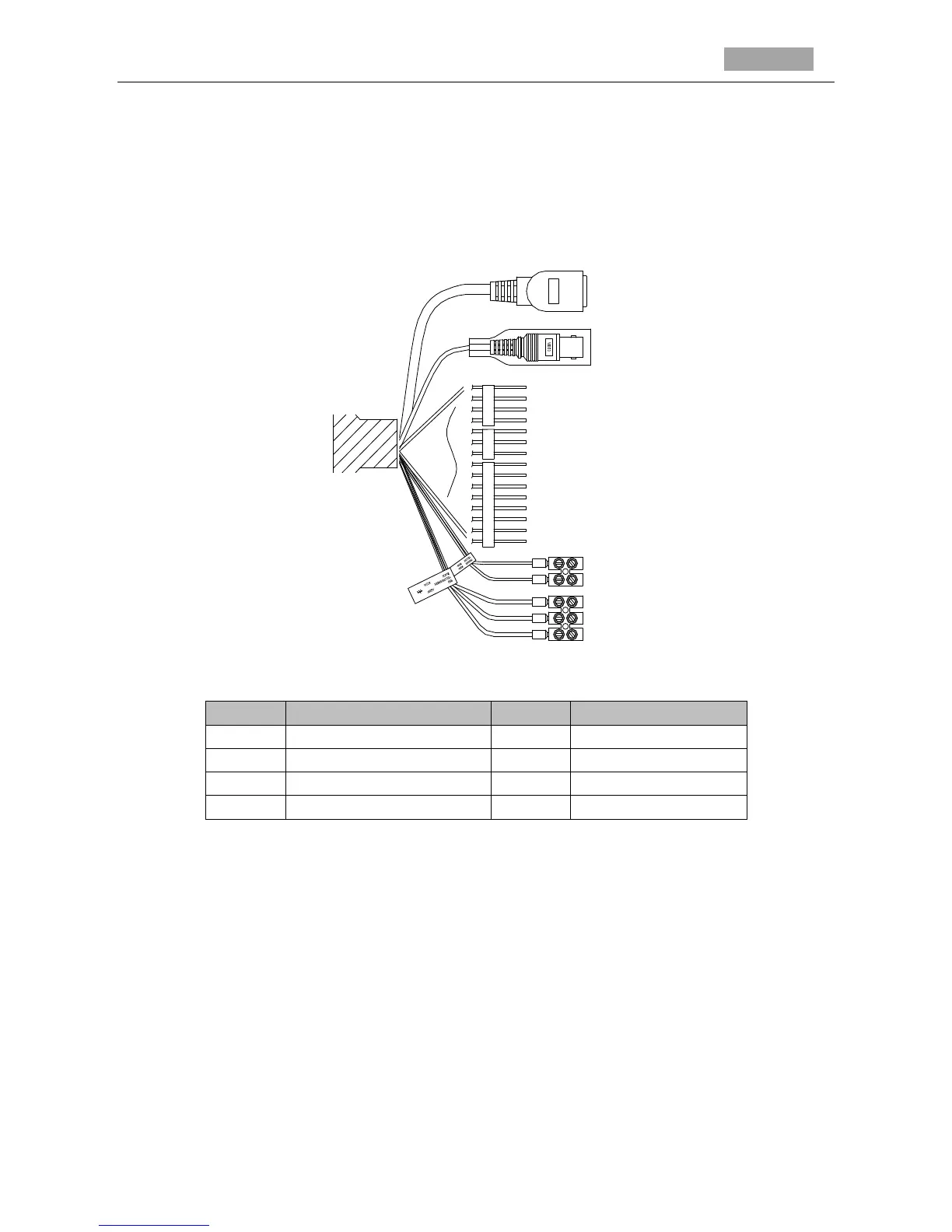

Figure 1-33 Cable of Network Speed Dome
Table 1-1 Descriptions of Cable Interface
No.
Description
No.
Description
1
Network Cable
2
Video Cable
3
Alarm Out
4
Audio Cable
5
Alarm In
6
RS-485
7
Power Cable
1.2 Alarm Input and Output Connection
 The network speed dome can be connected with alarm inputs (0~5 VDC)
 Refer to the following diagrams for alarm output:
