Network Speed Dome Installation Manual
13

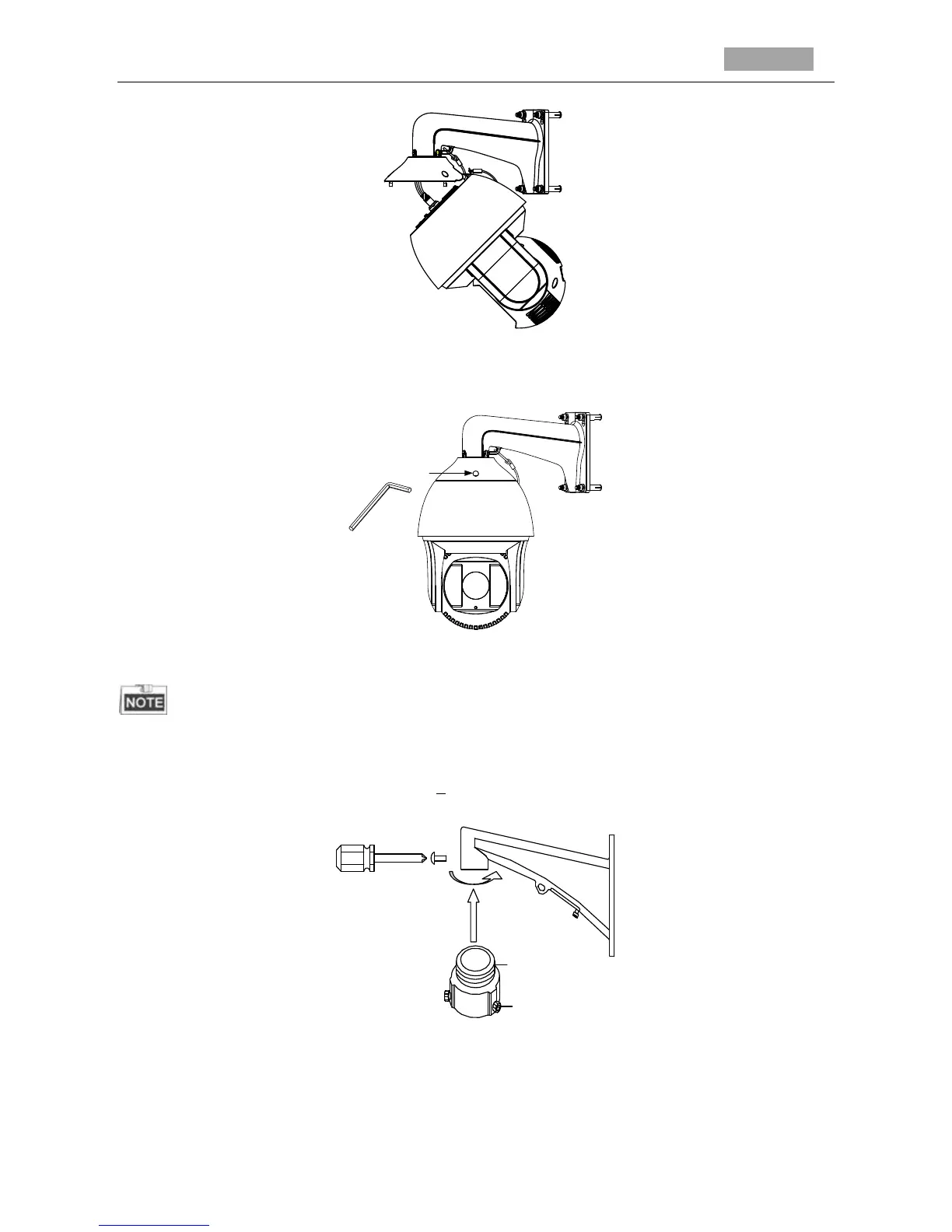

Figure 1-30 Route the Cables
9. Align the back box of the speed dome with the head cover. Use an Allen wrench to tighten the
lock screws to secure the speed dome and the bracket.
Lock Screws
Figure 1-31 Secure the Speed Dome
10. Remove the protective film of the IR or laser light after you finish installing.
 The bracket in Figure 1-26 is the recommended bracket for this series of speed dome, and a
pendent adapter is required if any other bracket is selected.
 The dimension of pendant adapter is G1
1
2
.
Pendant Adapter
Lock Screw
Figure 1-32 Pendent Adapter
