Network Speed Dome Installation Manual

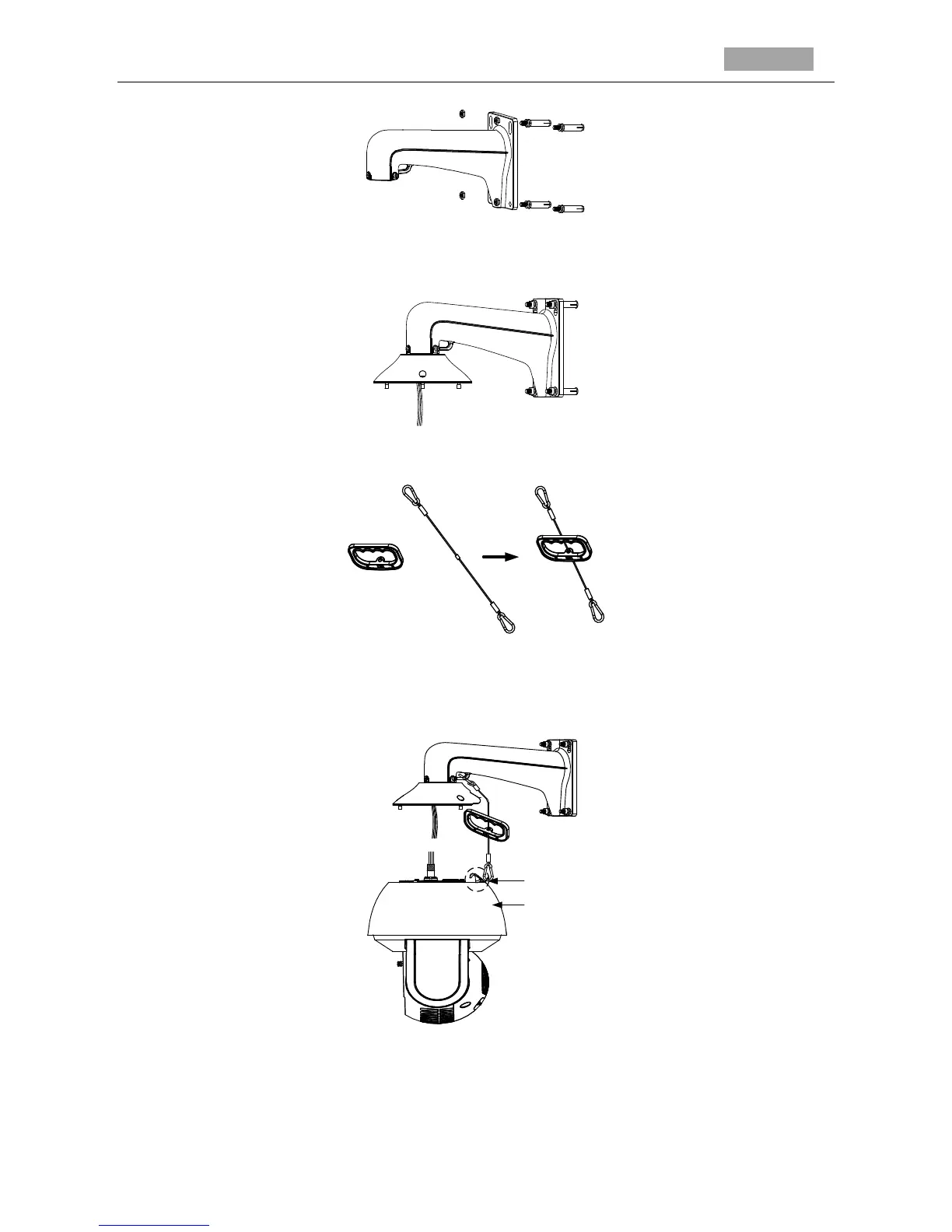

Figure 1-26 Secure the Bracket
4. Apply thread tape to the thread of the head cover and rotate the head cover to the bracket.
Secure the head cover to the bracket with set screws (supplied).
Figure 1-27 Secure the Head Cover
5. Buckle the handle to the safety rope.
Figure 1-28 Buckle the Handle
6. Hook the two ends of the safety rope to the back box of the speed dome and the bracket
respectively.
7. Hitch the speed dome onto the head cover with the hook on the back box.
Figure 1-29 Hang the Speed Dome
8. Route the cables through the head cover and bracket.
