Unmanaged PoE Switch/User Manual
12

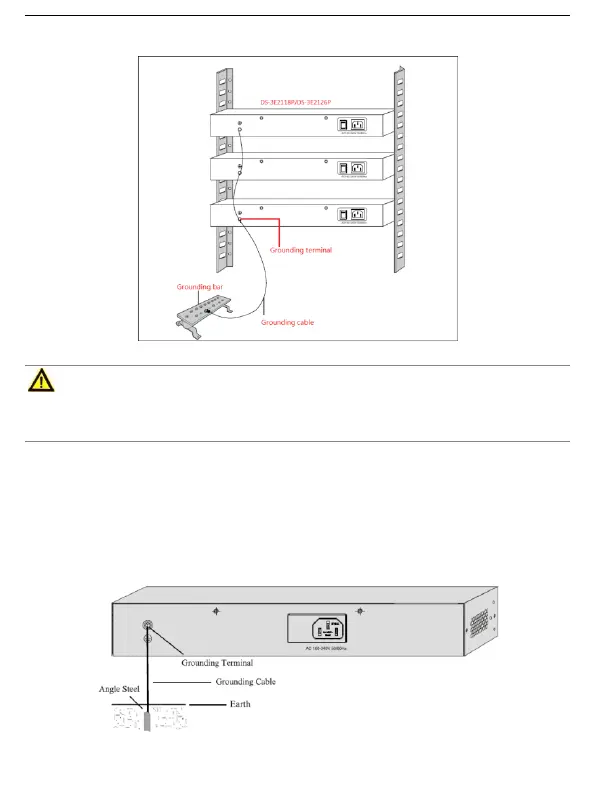

Take DS-3E0326P-E/M as an example
Note
Connect the grounding cable to the grounding system in the equipment room. Do not connect it to a fire main or lightning
rod.
Without the grounding bar
If there is no grounding bar but the grounding body can be buried, follow steps below:
Step 1: Bury an angle steel or steel pipe (Length ≥ 0.5 m) into the land.
Step 2: Weld one end of the grounding cable to the angle steel or steel pipe and protect the welding point against
corrosion (electroplating or coating).
Step 3: Connect the other end of the grounding cable to the grounding terminal.
Take DS-3E0326P-E/M as an example
