HIKVISION DS-3E0526P Series User Manual

16/24-Port Gigabit PoE Switch Quick Start Guide
3
Indicator
Unlit
No power supply connected or power supply is abnormal.
LINK/ACT
Indicator
Solid on
RJ45 port is connected.
Flashing
RJ45 port is transmitting data.
Unlit
RJ45 port is disconnected or connection is abnormal.
PoE Indicator
Solid on
The switch provides power supply to PD normally.
Unlit
The switch is disconnected to PD, or provides power supply to PD
abnormally.
PoE-MAX
Indicator
Solid on
/Flashing
The output power of the switch is about to reach or already reaches
the upper limit. The power supply may be abnormal if more devices
are connected.
Unlit
The switch provides power supply to PD normally.
Gigabit PoE Ports
Gigabit PoE ports are used for other PoE devices connection via network cables.
Ensure that your devices powered via the PoE port have their shells protected and fire-proofed,
because the switches are not compliant with the Limited Power Source (LPS) standard.
Gigabit RJ45 Port
Port 17/25 is a gigabit RJ45 port used for other devices connection via network cables.
Gigabit SFP Fiber Optical Port
Port 18/26 is a gigabit SFP fiber optical port used for other devices connection via optical fiber
when plugged into with an optical module.
1.3.2 Rear Panel
Rear panel of DS-3E0518P and DS-3E0526P is shown as below.

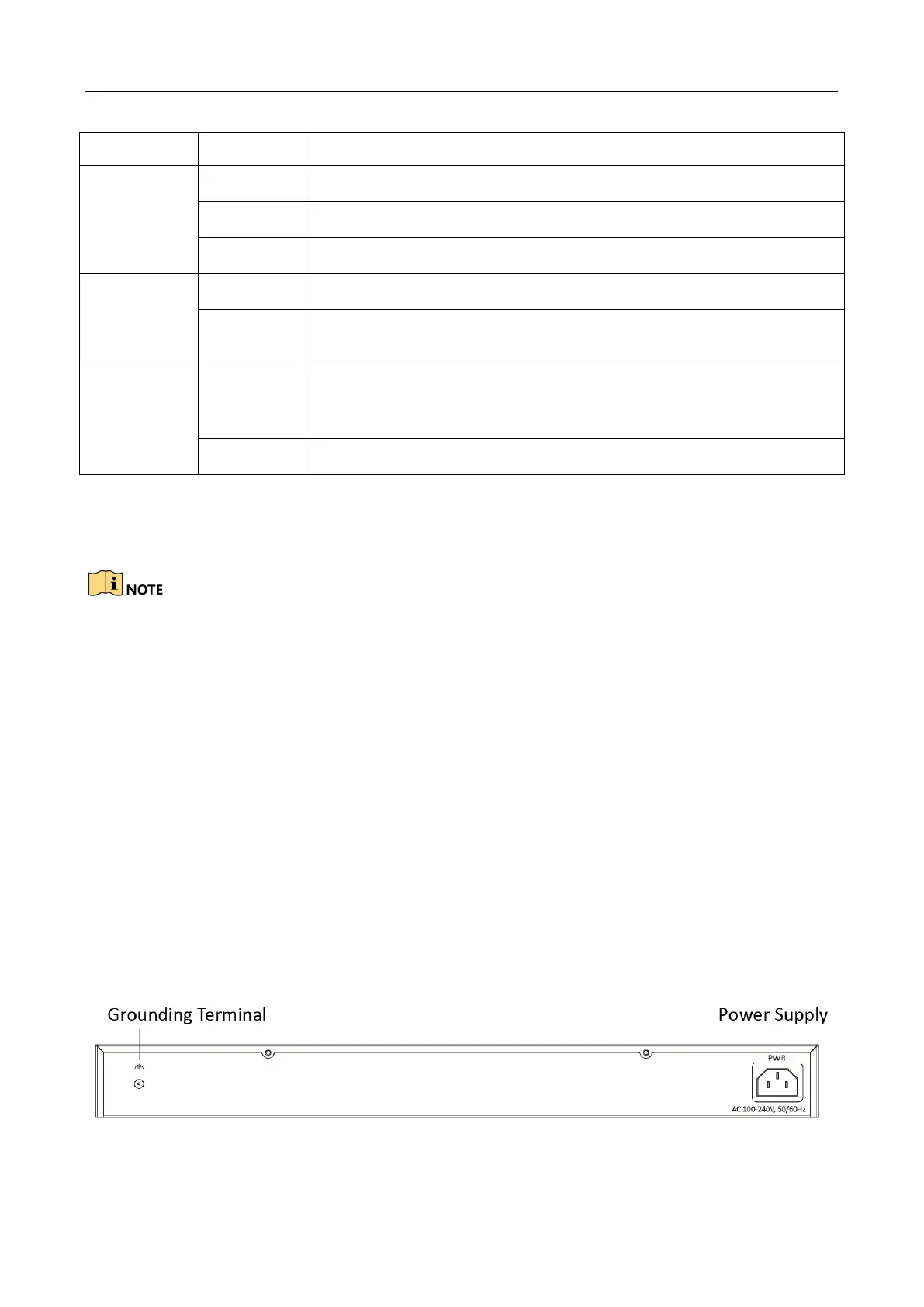

Rear Panel of DS-3E0518P and DS-3E0526P
Figure 1-3 DS-3E0518P and DS-3E0526P Rear Panel
