HIKVISION DS-3E1106HP-EI User Manual

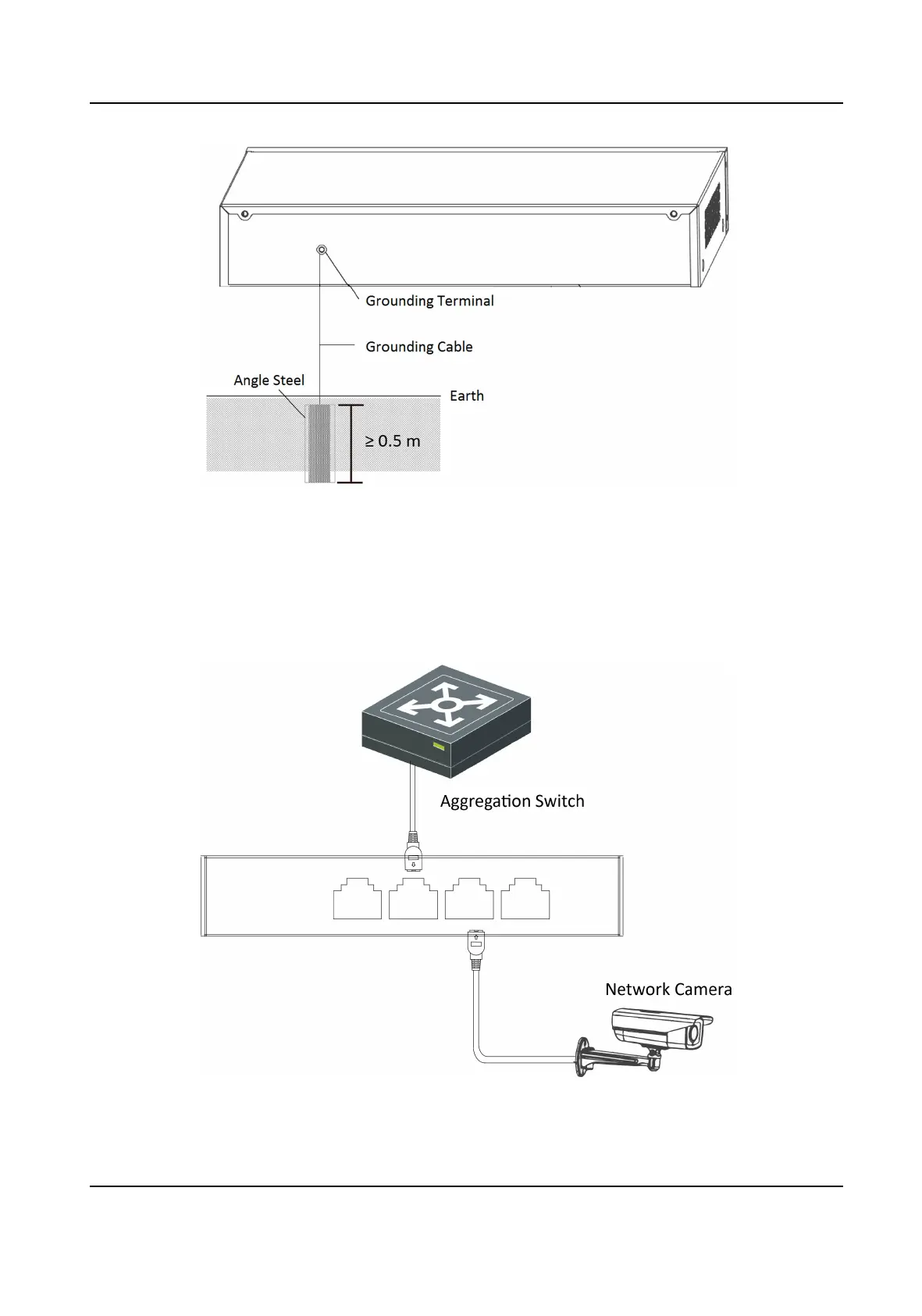

Figure 3-2 Ground with Angle Steel
3.2 Connect RJ45 Port
Use a network cable to connect the device to the RJ45 port of a peer device such as network
camera, NVR, switch, etc.
Figure 3-3 RJ45 Port Connecon
100 Mbps Hi-PoE Switch Quick Start Guide
6

HIKVISION DS-3E1106HP-EI Specifications

General

Brand	HIKVISION
Model	DS-3E1106HP-EI
Category	Switch
Language	English
