HIKVISION DS-3E1106HP-EI User Manual

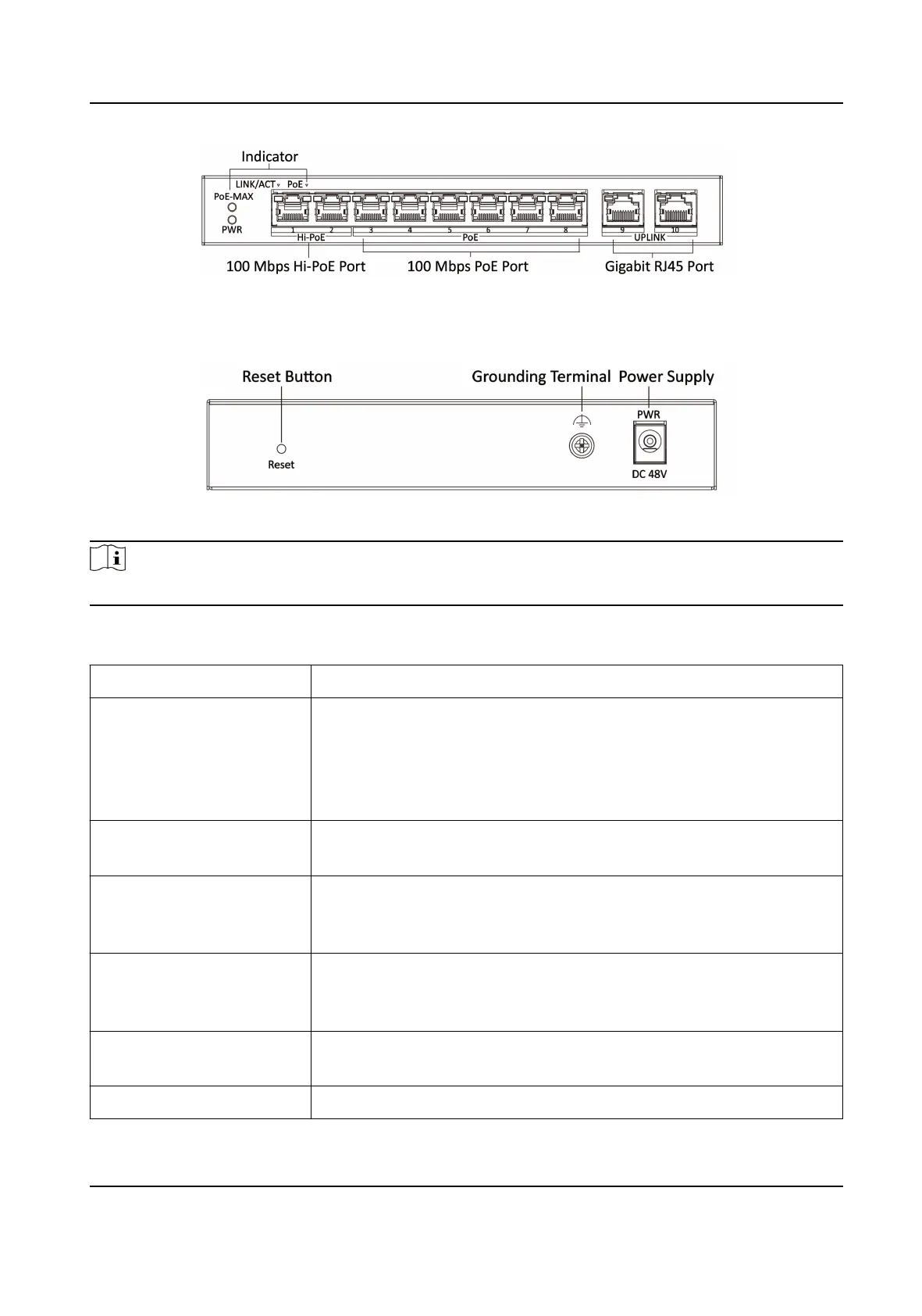

Figure 1-2 DS-3E1310HP
Rear Panel
Figure 1-3 DS-3E1XXXHP Series
Note
54 VDC power supply is required for the DS-3E1310HP series switch.
Port/Indicator Descripon
Indicator/Port Descripon
PoE-MAX Indicator • Solid/Flashing: The output power of the switch will reach the
upper limit. The power supply may be abnormal if more devices
are connected.
• Unlit: The switch provides power supply to PD (Power Device)
normally.
PWR Indicator • Solid: The switch is powered on normally.
• Unlit: No power supply connected or power supply is abnormal.
LINK/ACT Indicator • Solid: The port is connected.
• Flashing: The port is
transming data.
• Unlit: The port is disconnected or connecon is abnormal.
PoE Indicator • Solid: The switch provides power supply to PD normally.
• Unlit: The switch is disconnected to PD, or provides power supply
to PD abnormally.
Hi-PoE Port Used for other Hi-PoE PTZ cameras connecon. At dierent
temperatures, the max. power of the ports is dierent.
PoE Port Used for PD devices connecon via network cables.
100 Mbps Hi-PoE Switch Quick Start Guide
2
