User Manual of DS-7000HI-S Series Net DVR
Page 79

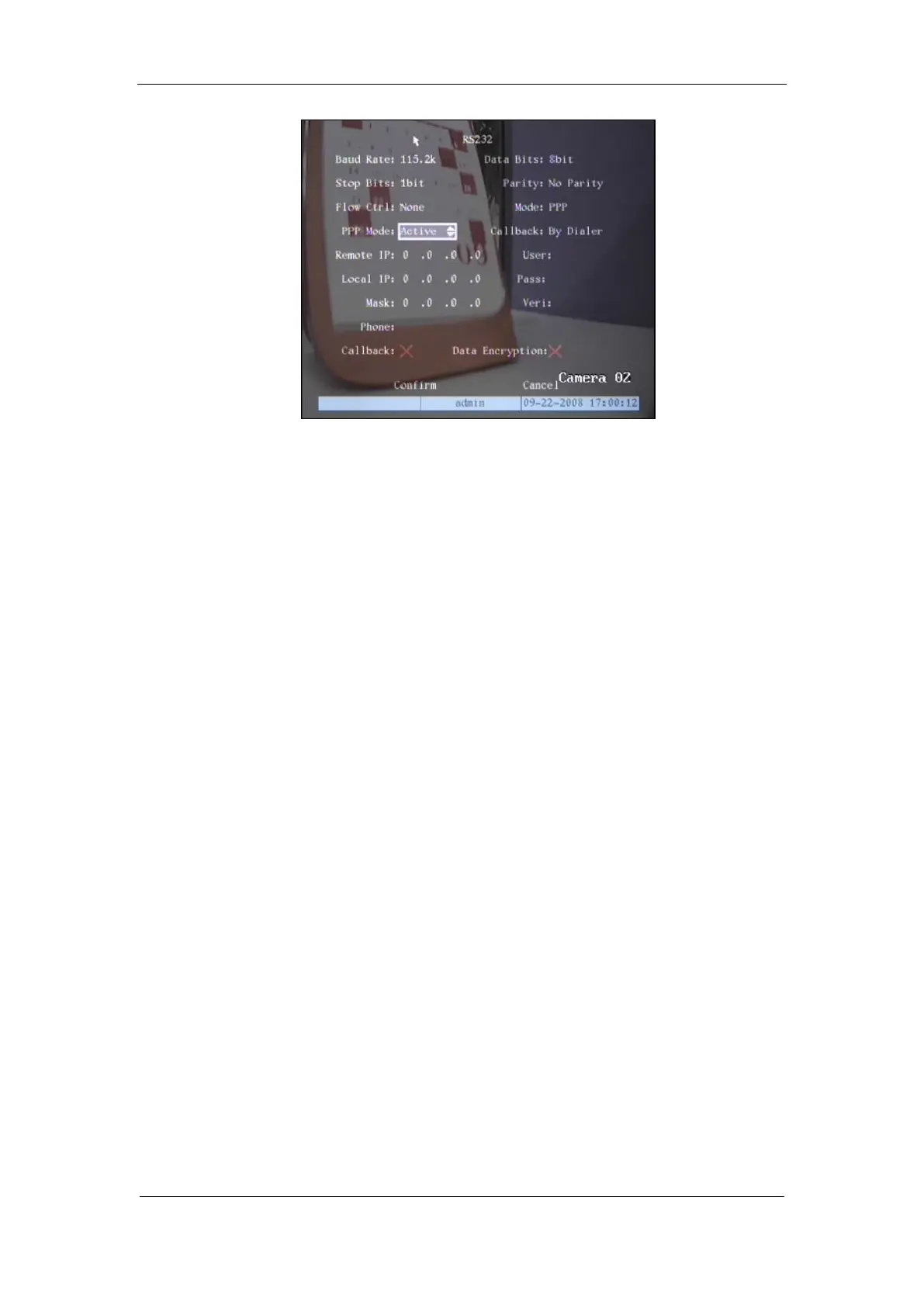

Callback mode: Only used when work mode is “PPP”. There are two options: “By Dialer”
and “Preset Tel’. This function is not available.
Remote IP: Only used when work mode is “PPP”. This IP is defined for remote PC that will
connect DVR through PSTN.
Local IP: Only used when work mode is “PPP”. This IP is defined for DVR.
Mask: Only used when work mode is “PPP”. Remote IP and Local IP are in the same sub
net.
Username, password and Verify password: Only used when work mode is “PPP”. Used for
login when remote PC dialup through PSTN.
Phone: Only used when work mode is “PPP” and PPP mode is “Active”. It is the phone
number of remote PC.
Callback and Data Encryption: Only used when work mode is “PPP”. They are not
available.
Confirm: Save parameters and return to main menu.
Cancel: Abort modification and return main menu.
Example: PPP (Modem) passive dialup through PSTN
There are two Modems. One is connected DVR RS-232 port with DCE cable. The other is
connected with PC COM port.
