Digital Video Recorder User Manual
176
You can click the checkbox of Save VCA Picture to save the captured pictures of VCA
detection.
Step 3 Select the VCA detection type to Vehicle Detection.
Step 4 Check the Enable checkbox to enable this function.

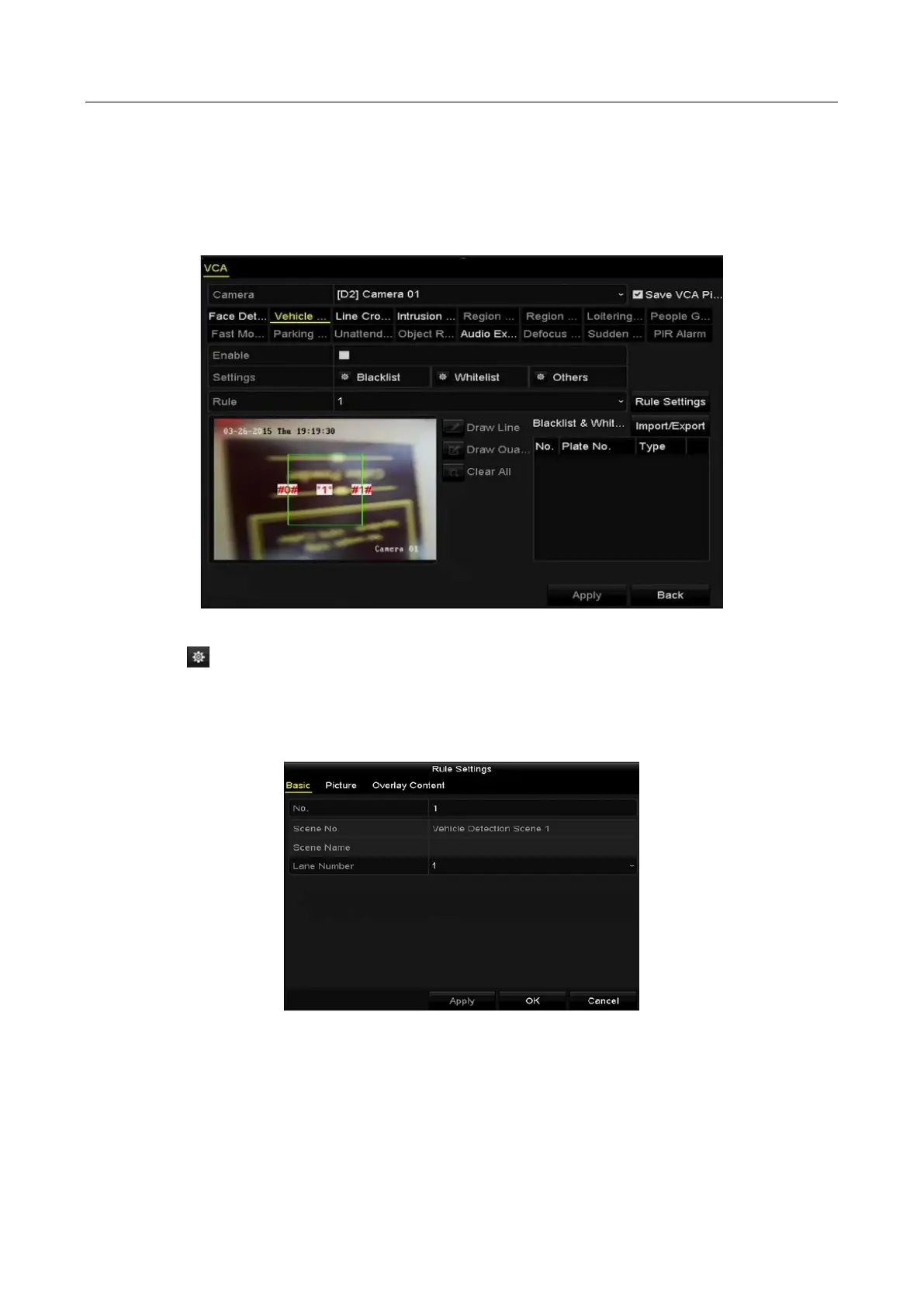

Figure 10-3 Set Vehicle Detection
Step 5 Click to configure the trigger channel, arming schedule and linkage actions for the
Blacklist, Whitelist and Others.
Step 6 Click the Rule Settings to enter the rule settings interface. Configure the lane, upload
picture and overlay content settings. Up to 4 lanes are selectable.
Figure 10-4 Rule Settings
Step 7 Click Save to save the settings.
