Digital Video Recorder User Manual
49
 OPTION 2:
Step 1 On the IP Camera Management interface, click the Custom Adding button to pop up the
Add IP Camera (Custom) interface.

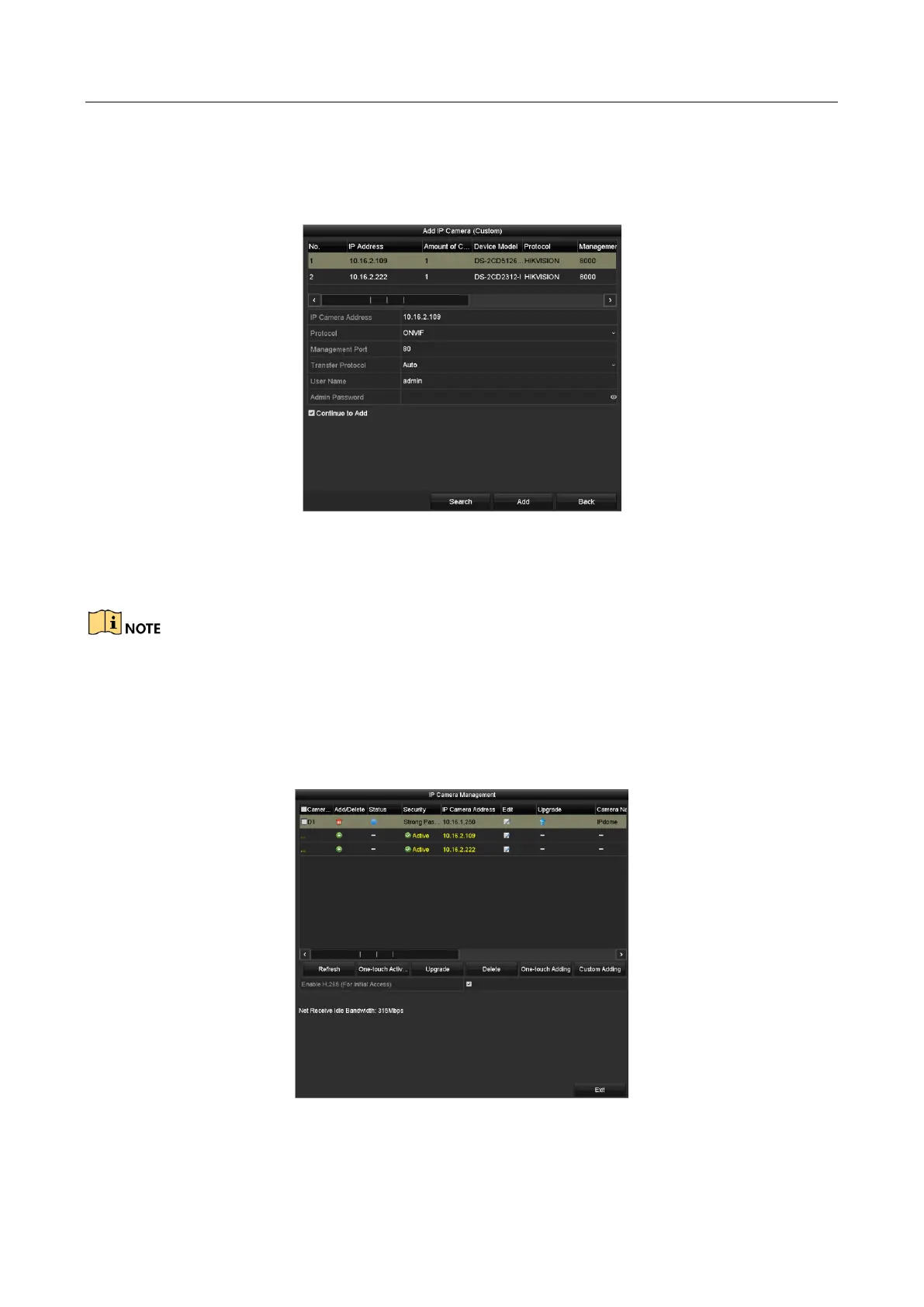

Figure 2-39 Custom Adding IP Camera Interface
Step 2 You can edit the IP address, protocol, management port, and other information of the IP
camera to be added.
If the IP camera to add has not been actiavated, you can activate it from the IP camera list on the
IP Camera Management interface.
Step 3 Click Add to add the camera.
For the successfully added IP cameras, the Security status shows the security level of the
password of camera: strong password, weak password and risky password.
Figure 2-40 Successfully Added IP Cameras

HIKVISION DS-7104HQHI-K1 Specifications

General

Voltage	12 V
Product color	White
Rack capacity	1U
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+, H.265, H.265+
BNC input ports	1
Video input channels	4 channels
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	Serial ATA
Maximum HDD capacity	4000 GB
Power consumption (typical)	8 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	1000 g
Dimensions (WxDxH)	200 x 200 x 45 mm
