Digital Video Recorder User Manual
139

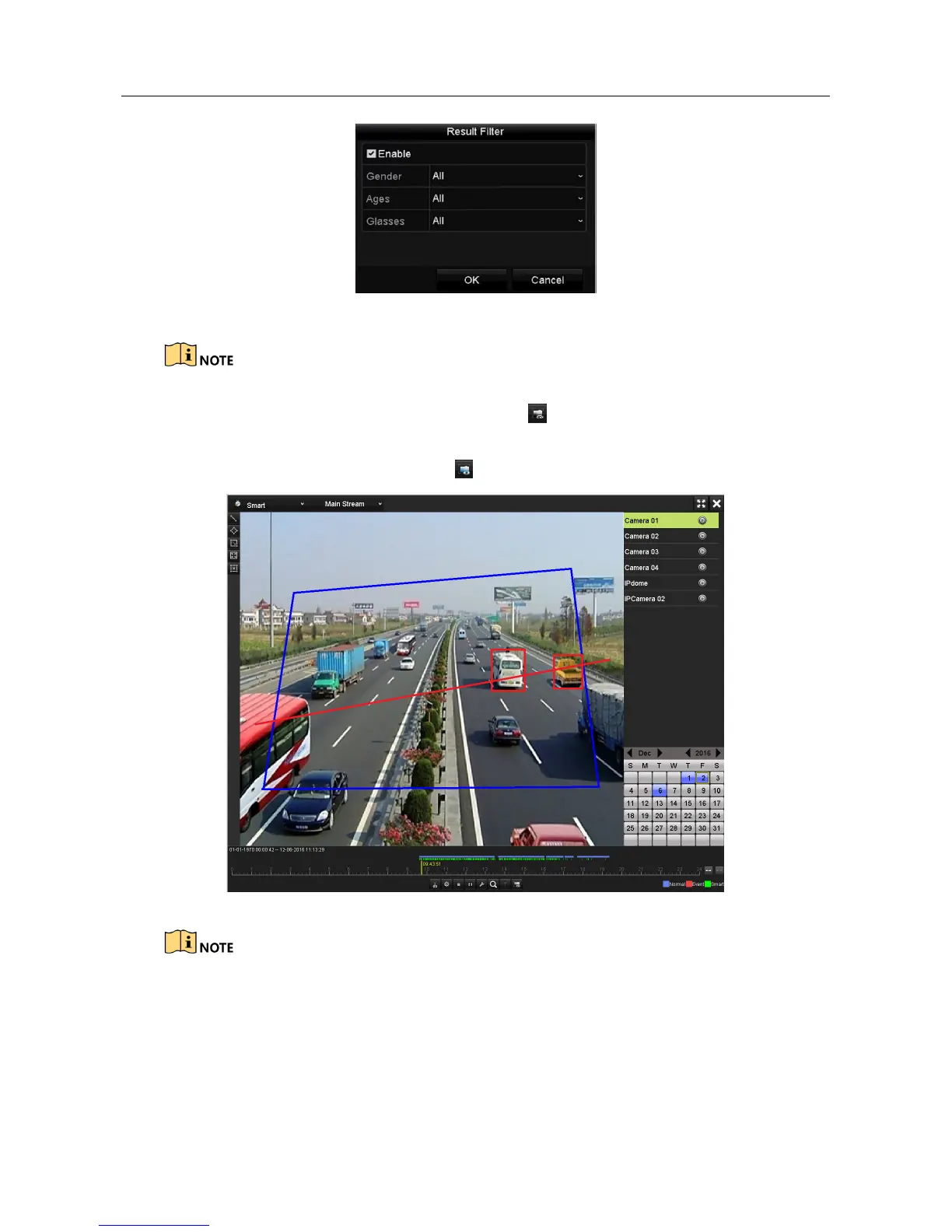

Figure 6-16 Set Result Filter
The Result Filter function is supported by the IP camera only.
Step 9 (Optional) For the cameras supporting VCA, click to show the VCA information.
Then the configured line or quadrilateral in VCA configuration and target frame(s) will be
shown on the playback interface. Click to hide the VCA information.
Figure 6-17 Show VCA Information

In smart playback, both the analog and IP cameras support VCA information overlay.

If the connected camera does not support VCA, the icon is grey and unavailable.

For the analog cameras, the VCA information includes line crossing detection and intrusion
detection. For the IP cameras, the VCA information includes all the VCA detections of smart
IP camera.

HIKVISION DS-7108HQHI-F1/N Specifications

General

BNC input ports	1
Video input channels	8 channels
USB 2.0 ports quantity	2
Power consumption (typical)	12 W
Voltage	12 V
Product color	White
Rack capacity	1U
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	800 g
Dimensions (WxDxH)	200 x 200 x 45 mm
