HIKVISION DS-7108HQHI-F1/N User Manual

Digital Video Recorder User Manual
47
No. Item Description
12 VIDEO OUT BNC connector for video output.
13 Alarm In/Out Connector for alarm input and output.
Rear Panel 7:

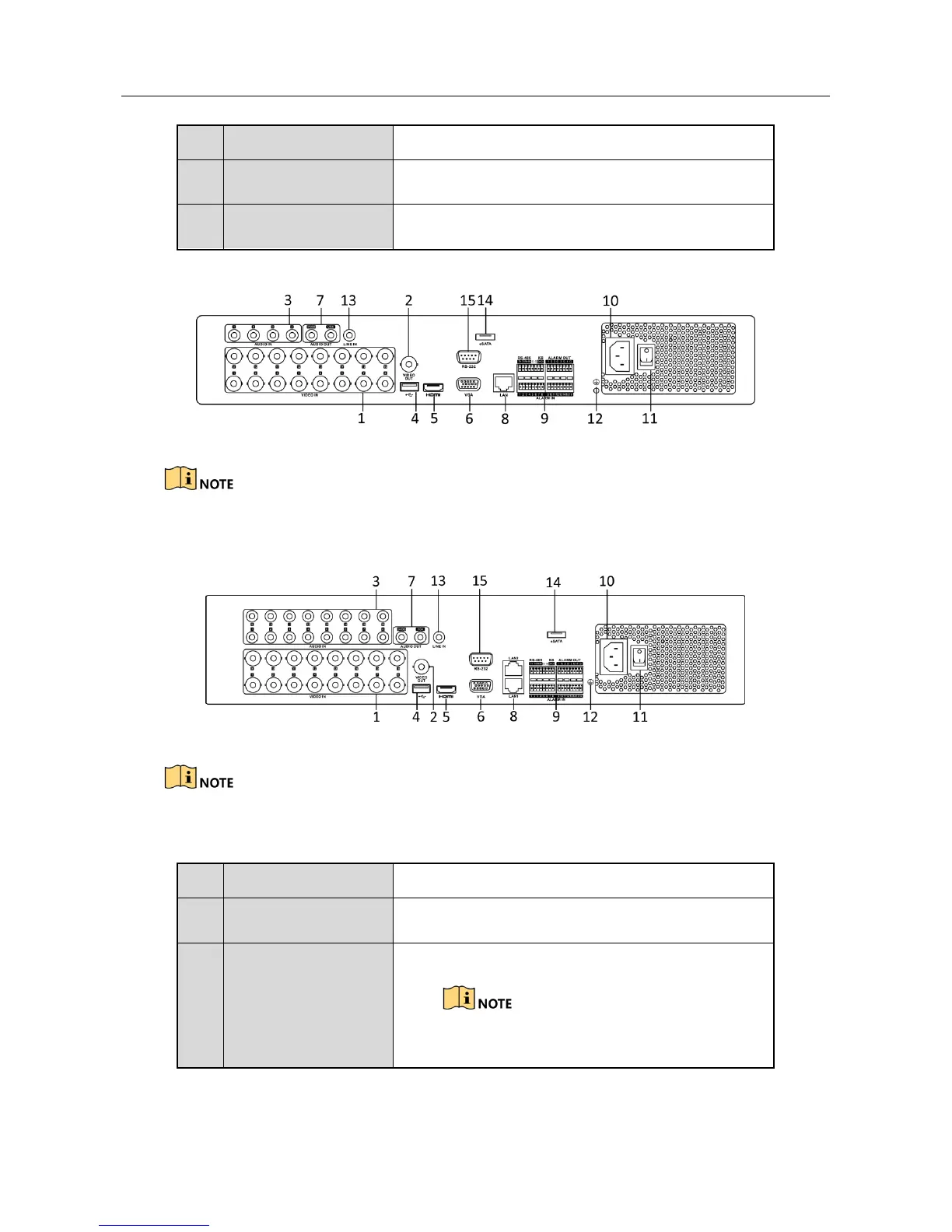

Figure 1-17 Rear Panel of DS-7300HQHI-F4/N
The rear panel of DS-7304HQHI-F4/N and DS-7308HQHI-F4/N provide 4 and 8 video input
interfaces respectively.
Rear Panel 8:
Figure 1-18 Rear Panel of DS-8100HQHI-F8/N
The rear panel of DS-8104HQHI-F8/N and DS-8108HQHI-F8/N provide 4 and 8 video input
interfaces respectively.
Table 1-14 Description of Rear Panel
No. Item Description
1 VIDEO IN BNC interface for Turbo HD and analog video input.
2
VIDEO OUT BNC connector for video output.
CVBS output is not provided by DS-7100/7200HGHI-E1,
DS-7200HGHI-E2, DS-7100/7200HGHI-F1,

HIKVISION DS-7108HQHI-F1/N Specifications

General

BNC input ports	1
Video input channels	8 channels
USB 2.0 ports quantity	2
Power consumption (typical)	12 W
Voltage	12 V
Product color	White
Rack capacity	1U
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	800 g
Dimensions (WxDxH)	200 x 200 x 45 mm
