HIKVISION DS-7108HQHI-F1/N User Manual

Digital Video Recorder User Manual
69
Purpose
Before adding the camera, make sure the IP camera to be added is in active status.
Step 1 Select the Add IP Camera option from the right-click menu in live view mode or click
Menu> Camera> IP Camera to enter the IP Camera Management interface.
For the IP camera detected online in the same network segment, the Security status shows
whether it is active or inactive.

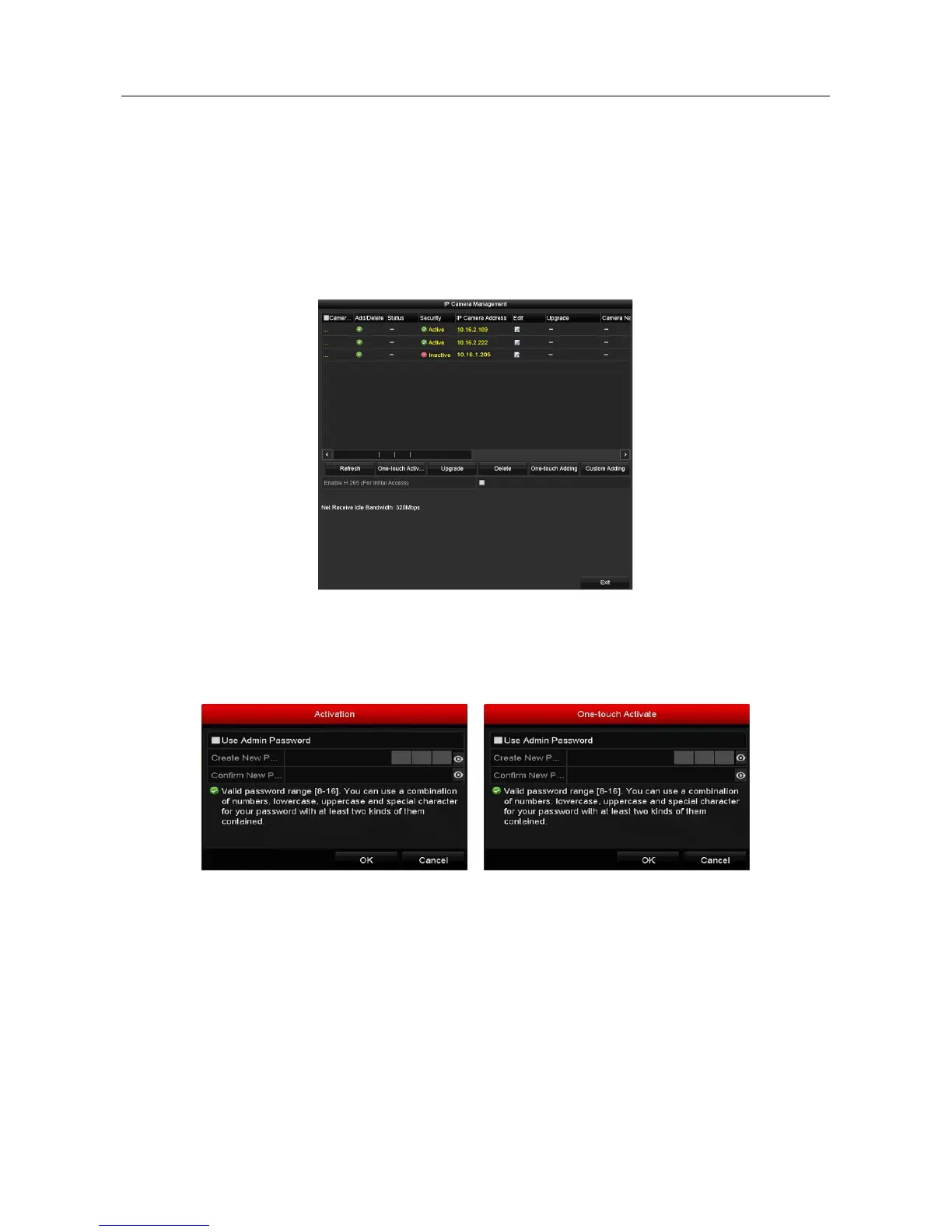

Figure 2-35 IP Camera Management Interface
Step 2 Click the inactive icon of the camera to enter the following interface to activate it. You can
also select multiple cameras from the list and click the One-touch Activate to activate the
cameras in batch.
Figure 2-36 Activate the Camera
Step 3 Set the password of the camera to activate it.
Use Admin Password: When you check the checkbox, the camera (s) will be configured
with the same admin password of the operating DVR.
Create New Password: If the admin password is not used, you must create the new
password for the camera and confirm it.

HIKVISION DS-7108HQHI-F1/N Specifications

General

BNC input ports	1
Video input channels	8 channels
USB 2.0 ports quantity	2
Power consumption (typical)	12 W
Voltage	12 V
Product color	White
Rack capacity	1U
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	800 g
Dimensions (WxDxH)	200 x 200 x 45 mm
