Digital Video Recorder User Manual
34
For the old version device, if you update it to the new version, the following dialog box will
pop up once the device starts up. You can click YES and follow the wizard to set a strong
password.

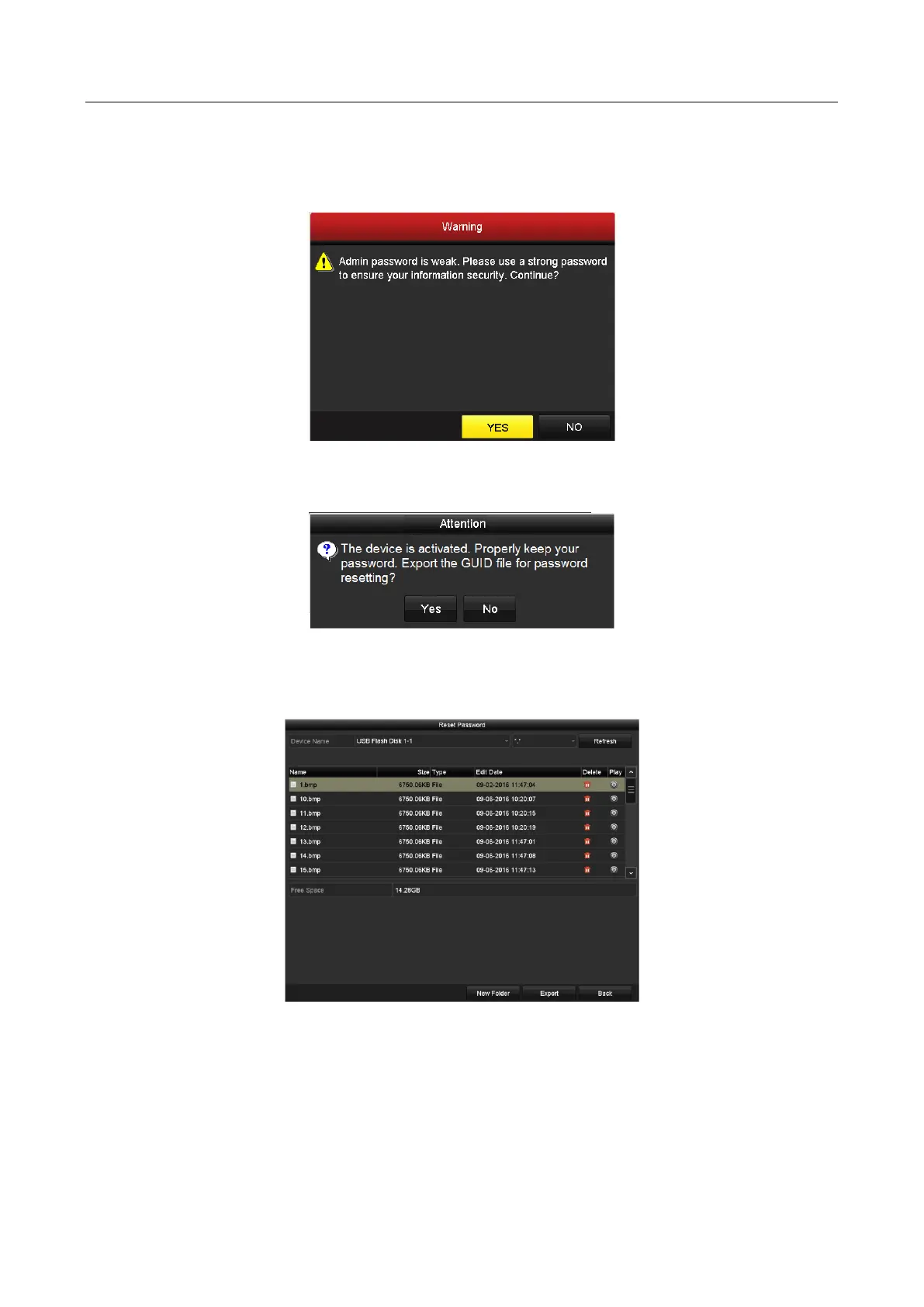

Figure 2-4 Warning
Step 3 After the device is activated, the Attention box pops up as below.
Figure 2-5 Attention
Step 4 (Optional) Click Yes to export GUID. The Reset Password interface pops up. Click Export to
export GUID to the USB flash drive for password resetting.
Figure 2-6 Export GUID
Step 5 After exporting GUID, the Attention box pops up as below. Click Yes to duplicate the
password or No to cancel it.

Table of Contents

Other manuals for HIKVISION DS-7108HQHI-K1

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7108HQHI-K1 and is the answer not in the manual?

HIKVISION DS-7108HQHI-K1 Specifications

General IconGeneral
BNC input ports1
Video input channels8 channels
USB 2.0 ports quantity2
HDD interfaceSerial ATA
Maximum HDD capacity6000 GB
Power consumption (typical)12 W
Voltage12 V
Product colorWhite
Rack capacity1U
Audio output channels1.0 channels
Video compression formatsH.264, H.264+, H.265, H.265+
Ethernet LANYes
Ethernet interface typeFast Ethernet
Supported network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
Weight and Dimensions IconWeight and Dimensions
Weight1000 g
Dimensions (WxDxH)200 x 200 x 45 mm
