HIKVISION DS-7108HQHI-K1 User Manual

Digital Video Recorder User Manual
39
3) (Optional) Check the checkbox of Enable Pattern Unlock and draw the unlock pattern.
Or click of Draw Unlock Pattern to change the pattern. Refer to Chapter 2.3 Using
the Unlock Pattern for Login for reference.
4) (Optional) Click of Export GUID to export GUID to the connected USB flash drive
for resetting password. Refer to Chapter 17.5.3 Editing a User for reference.

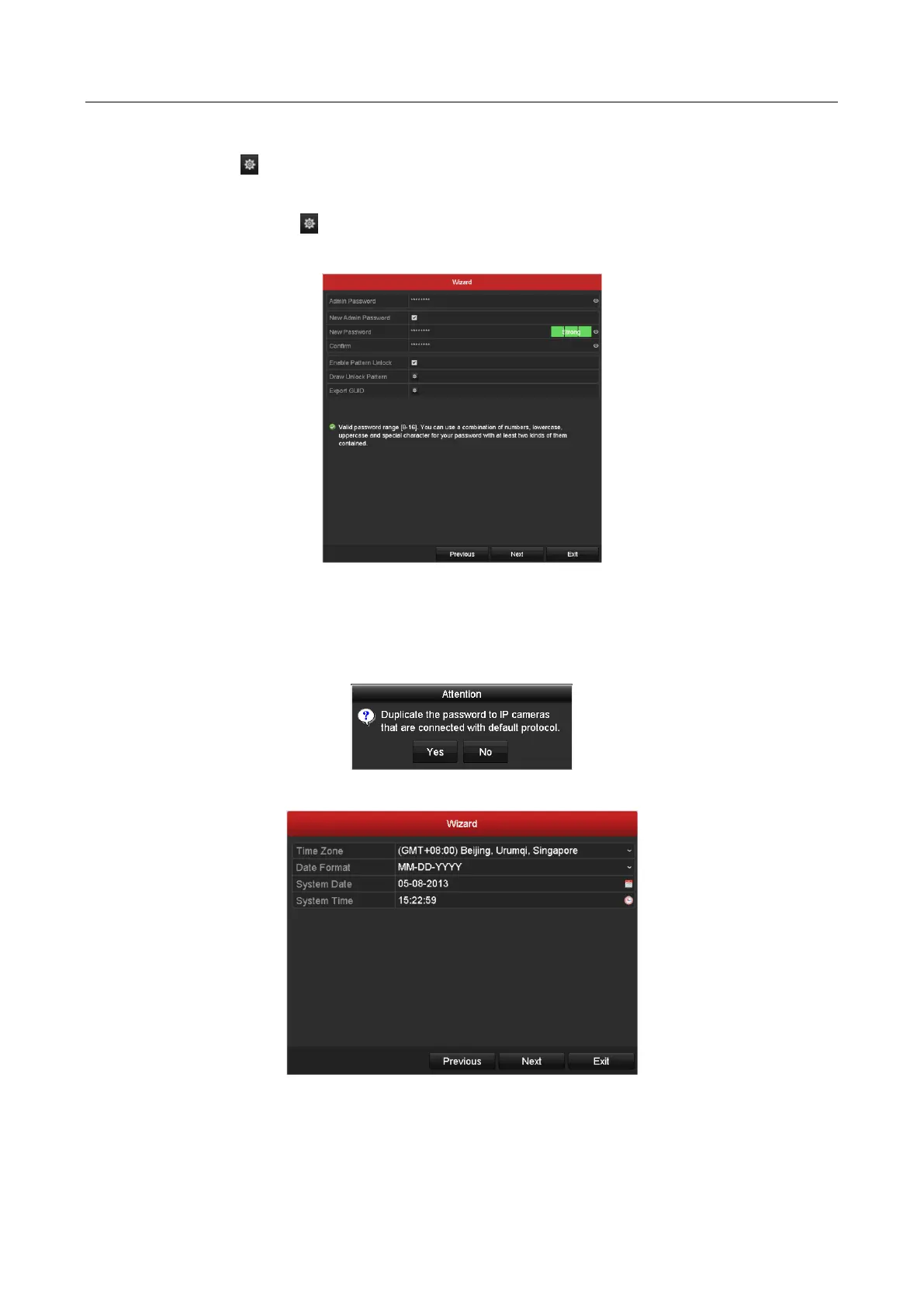

Figure 2-17 Change the Password
Step 3 Click Next button and the Attention box pops up as shown below. Click Yes to duplicate the
password of the device to IP cameras that are connected with default protocol. Or click No
to enter the Date and Time Settings interface.
Figure 2-18 Duplicate the Password
Figure 2-19 Date and Time Settings

HIKVISION DS-7108HQHI-K1 Specifications

General

BNC input ports	1
Video input channels	8 channels
USB 2.0 ports quantity	2
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Power consumption (typical)	12 W
Voltage	12 V
Product color	White
Rack capacity	1U
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+, H.265, H.265+
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	1000 g
Dimensions (WxDxH)	200 x 200 x 45 mm
