HIKVISION DS-7108HQHI-K1 User Manual

Digital Video Recorder User Manual
75

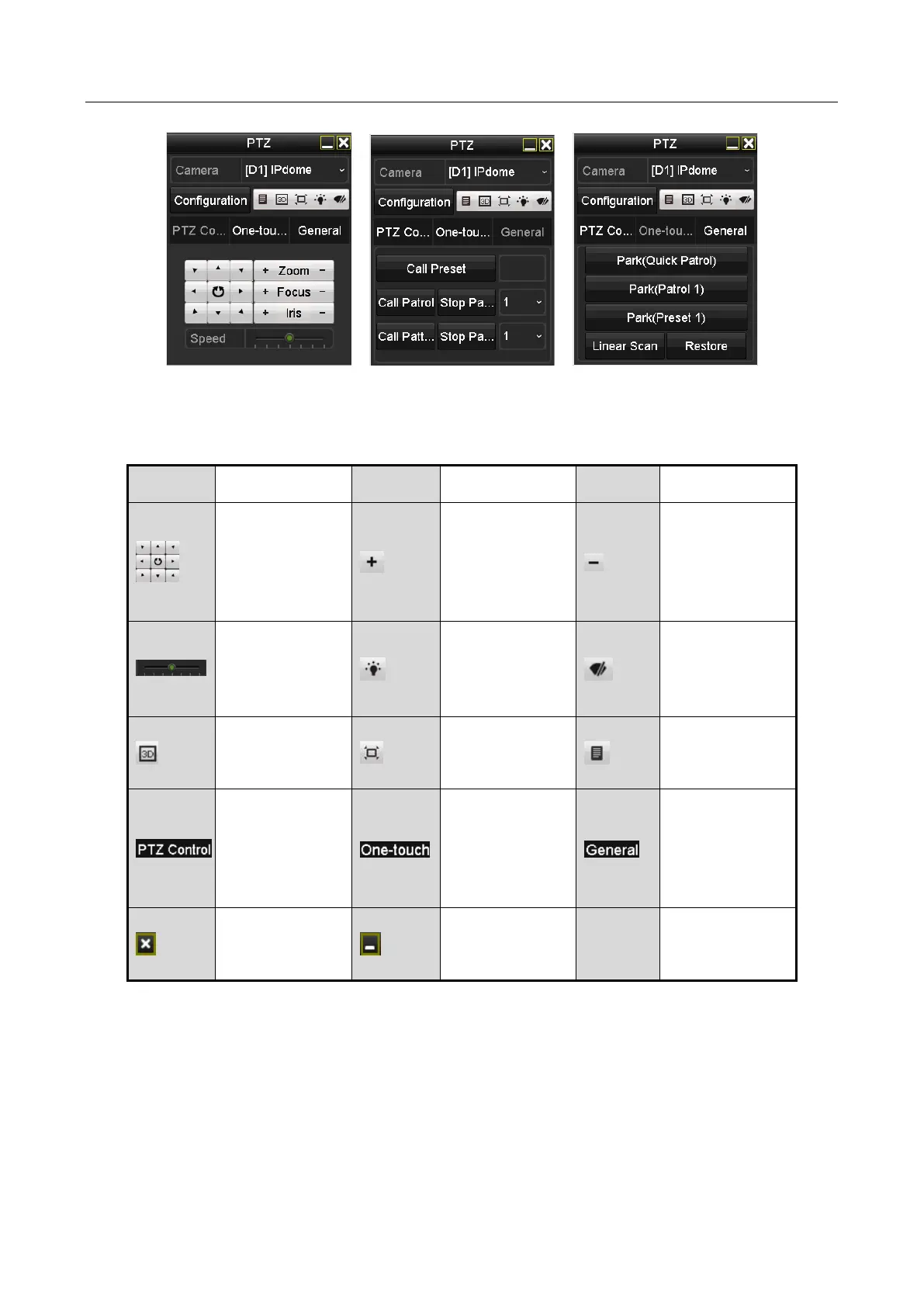

Figure 4-14 PTZ Control Panel
You can refer to Table 4-1 for the description of the PTZ panel icons.
Table 4-1 Description of the PTZ panel icons
Icon
Description
Icon
Description
Icon
Description
Direction
button and the
auto-cycle
button
Zoom+, Focus+,
Iris+
Zoom-, Focus-,
Iris-
The speed of
the PTZ
movement
Light on/off
Wiper on/off
3D-Zoom
Centralization
Menu
Switch to the
PTZ control
interface
Switch to the
one-touch
control
interface
Switch to the
general settings
interface
Exit
Minimize
windows

HIKVISION DS-7108HQHI-K1 Specifications

General

BNC input ports	1
Video input channels	8 channels
USB 2.0 ports quantity	2
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Power consumption (typical)	12 W
Voltage	12 V
Product color	White
Rack capacity	1U
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+, H.265, H.265+
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	1000 g
Dimensions (WxDxH)	200 x 200 x 45 mm
