HIKVISION DS-7108NI-Q1/8P/M User Manual

Steps
1. Go to
Conguraon → Event .
2.
Congure the event detecon and select the cameras to trigger the recording when event
occurs.
3.
Go to
Conguraon → Record → Parameter .
4. Set the
connuous main stream/sub-stream recording parameters for the camera.
5. Go to
Conguraon → Record → Schedule .
6. Select recording type as Event.
Edit Schedule
Steps
1. Go to Conguraon → Record → Schedule .

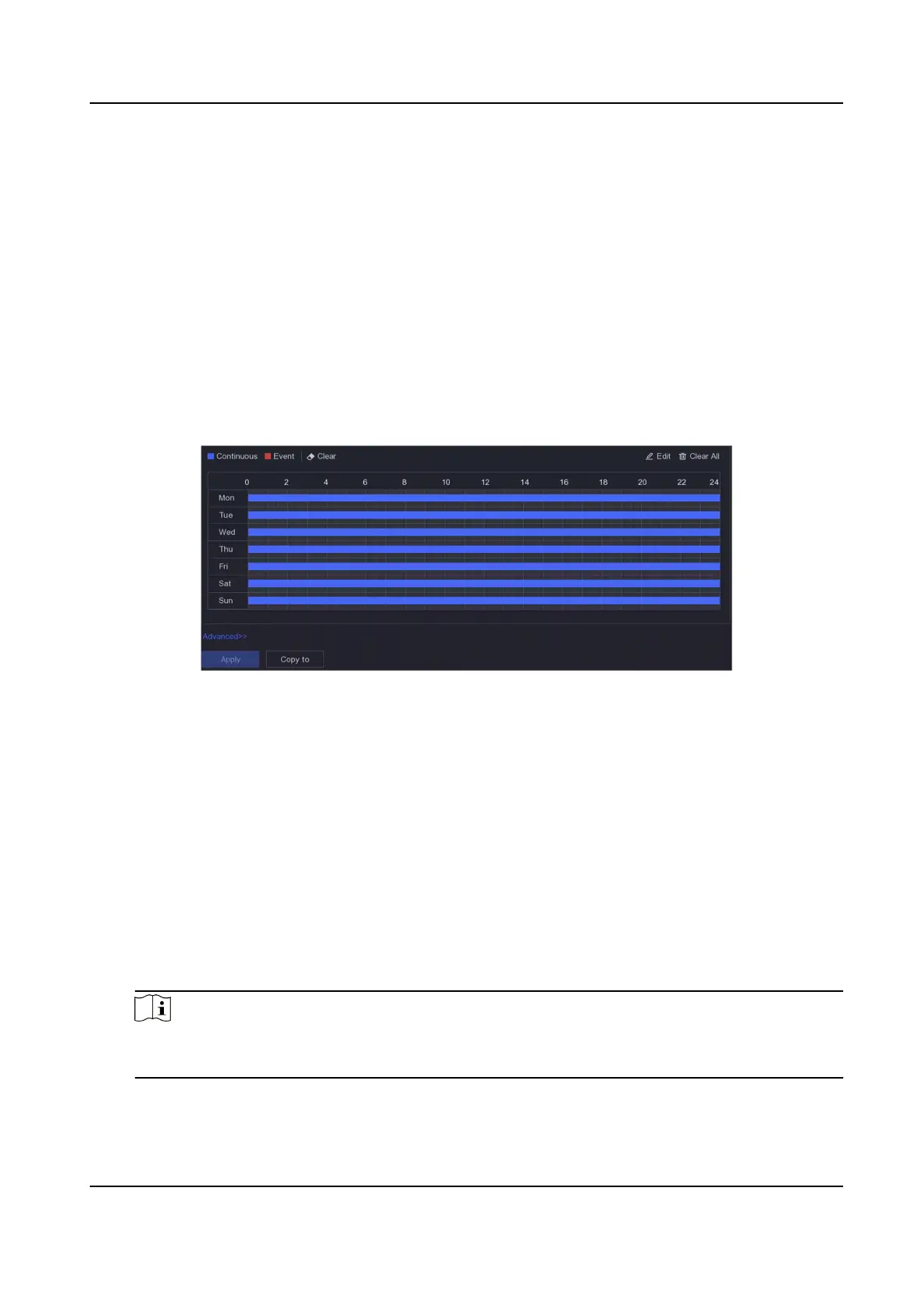

Figure 6-24 Recording Schedule
Connuous
Connuous recording.
Event
Recording triggered by all event triggered alarm.
2. Select a camera in Camera No.
3. Turn on Enable.
4.
Congure the recording schedule.
1) Click Edit.
2) Select a day to
congure in Weekday.
3) To set an all-day recording schedule, check All Day and select schedule Type.
4) To set other schedules, uncheck All Day and set Start/End
me and schedule Type.
Note
Up to 8 periods can be congured for each day. And the me periods cannot be overlapped
with each other.
5) Click OK to save the sengs and go back to upper level menu.
Network Video Recorder User Manual
64

HIKVISION DS-7108NI-Q1/8P/M Specifications

General

DC voltage	48 V
Power supply type	DC
Power consumption (typical)	75 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Video input channels	8 channels
USB 2.0 ports quantity	2
VGA (D-Sub) output ports	1
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Maximum HDD capacity	6000 GB
Video compression formats	H.264, H.265

Weight and Dimensions

Depth	225 mm
Width	260 mm
Height	48 mm
Weight	1000 g
