HIKVISION DS-7116NI-SN/P Quick Operation Guide

Quick Operation Guide of Network Video Recorder
20

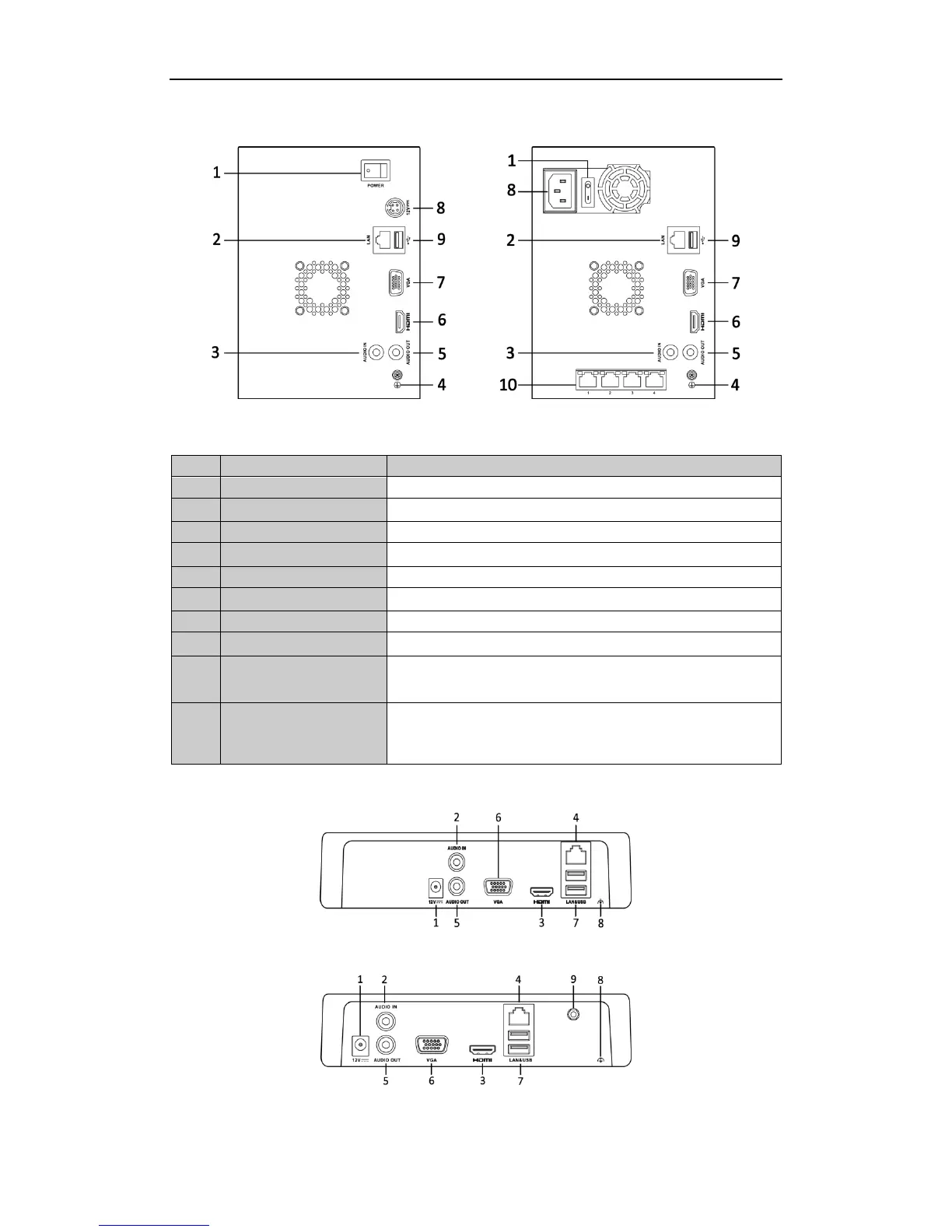

DS-7600NI-V and DS-7600NI-VP
DS-7600NI-V DS-7600NI-VP
No.
Item
Description
1
Power Switch
Switch for turning on/off the device.
2
LAN Network Interface
Connector for LAN (Local Area Network).
3
Audio In
RCA connector for voice talk input
4
GND
Ground (needs to be connected when NVR starts up).
5
Audio Out
RCA connector for audio output
6
HDMI Interface
HDMI video output connector.
7
VGA Output
DB9 connector for VGA output. Display local video output and menu.
8
Power Supply
100~240VAC power supply
9
USB Interface
Universal Serial Bus (USB) ports for additional devices such as USB
mouse and USB Hard Disk Drive (HDD).
10
Network Interfaces with
PoE function
(for DS-7600NI-VP)
Network interface for the cameras and to provide power over Ethernet.
DS-7100NI-SL, DS-7100NI-SN and DS-7100NI-SL/W
DS-7100NI-SL and DS-7100NI-SN
DS-7100NI-SL/W

HIKVISION DS-7116NI-SN/P Specifications

General

Number of users	128 user(s)
Maximum resolution	1920 x 1080 pixels
Video input channels	4 channels
Supported resolutions	1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Audio RCA inputs	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Power over Ethernet (PoE)	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-T
Power over Ethernet (PoE) ports quantity	4
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	4 TB
Number of HDDs installed	0
Output voltage	48 V
Power consumption (max)	35 W
Power consumption (typical)	6 W
Product color	White
Rack capacity	1U
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Wi-Fi	No

Weight and Dimensions

Depth	205 mm
Width	255 mm
Height	45 mm
Weight	1000 g
