HIKVISION DS-7200-ST Series

DS-7200-ST Series DVR Quick Operation Guide
19

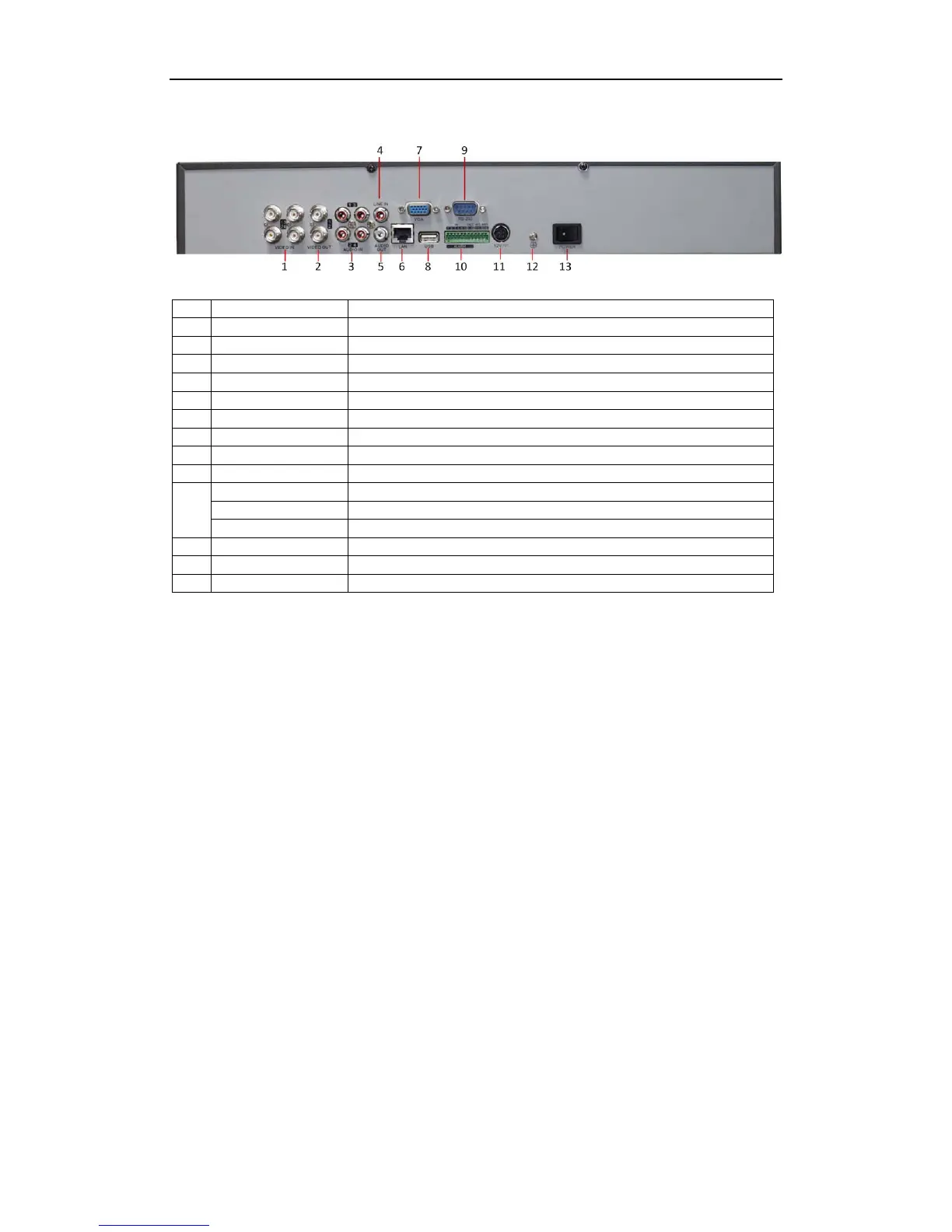

DS-7204HFI-ST/RW:
No. Item Description
1
VIDEO IN
BNC connectors for analog video input
2 VIDEO OUT VIDEO OUT1 is main video out, and VIDEO OUT2 is spot video out
3
AUDIO IN
RCA connectors for analog audio input
4 LINE IN RCA connector for audio input
5
AUDIO OUT
RCA connector for audio output
6 LAN Connector for LAN (Local Area Network)
7
VGA
DB15 connector for VGA output. Display local video output and menu
8 USB Connector for USB devices
9
RS-232 Interface
DB9 connector for RS-232 devices
10 ALARM IN Connector for alarm input
ALARM OUT
Connector for alarm output
RS-485 Interface Connector for RS-485 devices. T+, T- pin connects to PTZ
11
12V
12VDC power supply
12 GND Ground(needs to be connected when DVR starts up)
13
POWER
Switch for turn on/off the device
