Configuring Alarms
Setting up Motion Detection
Set up properly, using motion detected recording will increase the number of days your DVR is able to record. It will
only record relevant events rather than recording everything, making searching for an event easier.
To set up motion detection:
1. Enter Camera Settings interface by navigating to Menu > Settings > Camera.
2. Select the Advanced tab to open up the Advanced Camera Settings menu, shown in Figure 1.

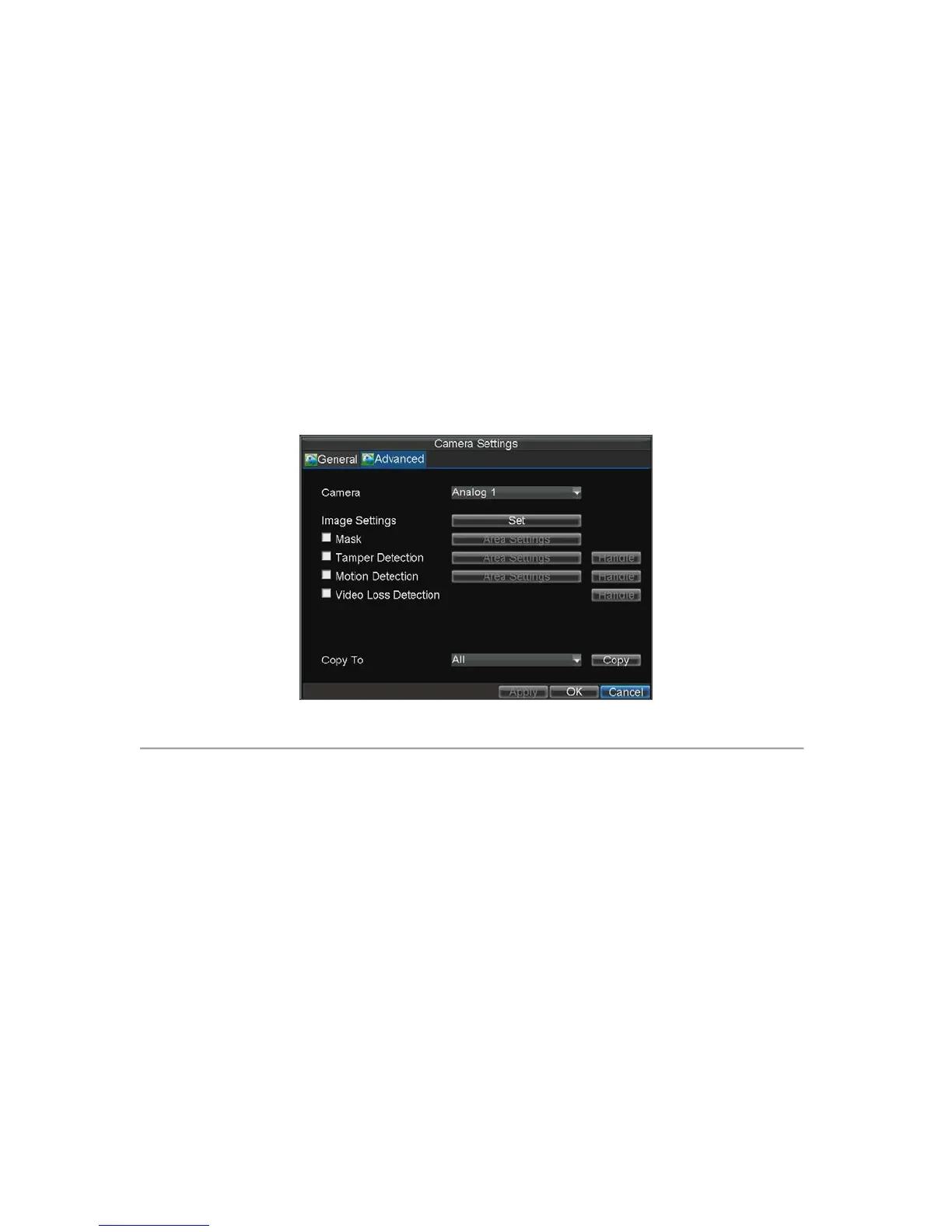

Figure 1. Advanced Camera Settings
3. Check the checkbox next to Video Motion Detection.
4. Click the Area Settings button to enter the Motion Detection area and Sensitivity configuration
interface.
5. The Motion Detection area, shown in Figure 2, allows you to mask out areas where you would like
motion to be detected in. The maximum area is the whole screen. Mask the Motion Detection area.
