67

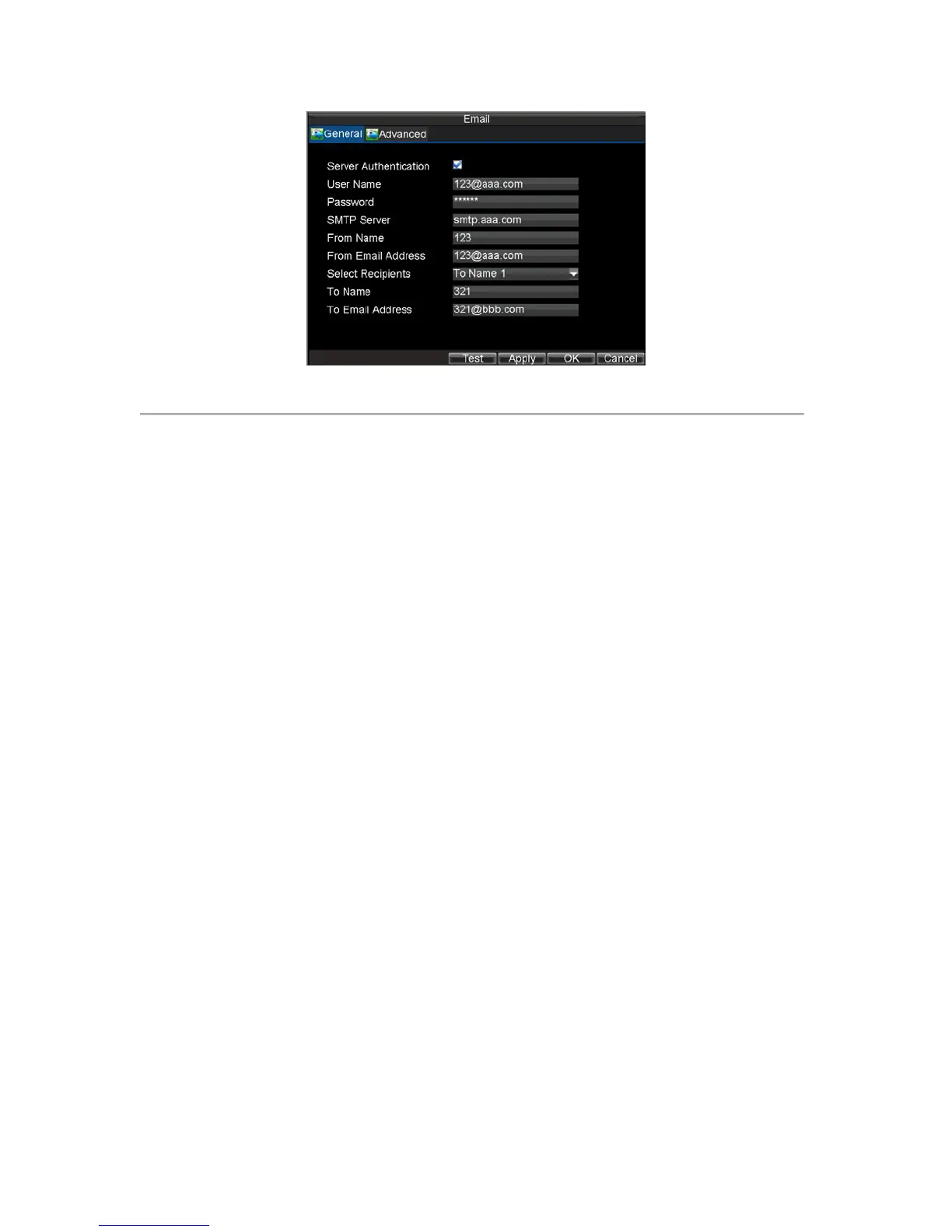

Figure 12. E-mail Menu
4. Enter e-mail settings. Please refer to Figure 12 for details.
5. Click the Test button to test e-mail settings.
6. Select Advanced tab to enable Attached JPEG File if you want to send email with alarm images, the
interval is the time of two adjacent alarm images. You can also set SMTP port and enable SSL here.
7. Click the OK button to save and exit the E-mail menu.
Note: It is recommended that the e-mail settings be tested after they are entered. This can be accomplished by
clicking the Test button in the E-mail menu.
