HIKVISION DS-7208HQHI-F2/N Quick Start Guide

Digital Video Recorder Quick Start Guide
17
No.
Item
Function Description
11
Power Switch
Switch for turning on/off the device.
12
GND
Ground
13
LINE IN
BNC connector for audio input.
14
eSATA
Connects external SATA HDD, CD/DVD-RW.
15
RS-232 Interface
Connector for RS-232 devices.

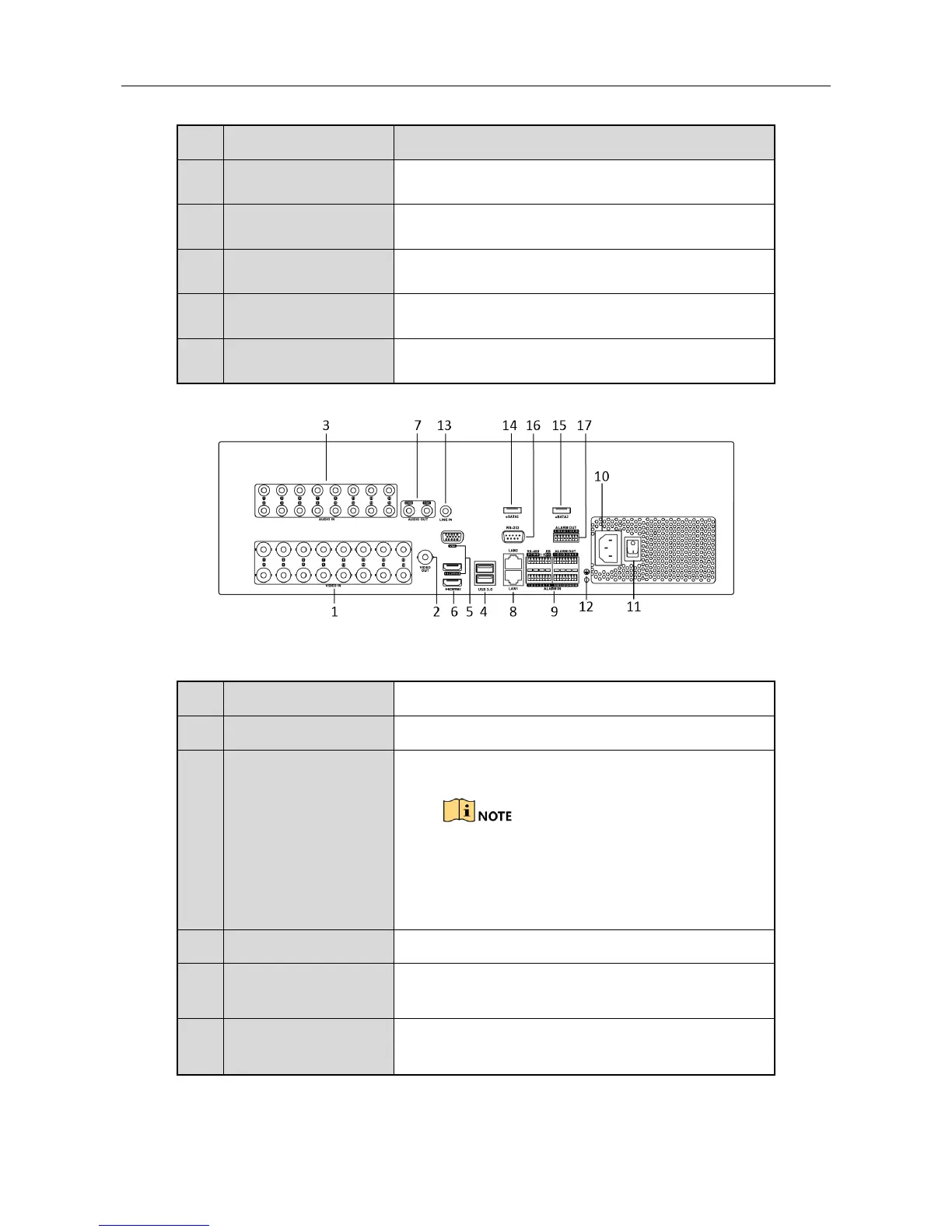

 Rear Panel 3
Figure 1-8 Rear Panel 3
Table 1-7 Description of Rear Panel 3
No.
Item
Description
1
VIDEO IN
BNC interface for TVI and analog video input.
2
VIDEO OUT
BNC connector for video output.
CVBS output is not provided by DS-7100/7200HGHI-E1,
DS-7200HGHI-E2, DS-7100/7200HGHI-F1,
DS-7200HGHI-F2, DS-7100HQHI-F1/N, and
DS-7100HGHI-F1/N series DVR.
3
AUDIO IN
BNC connector
4
USB Port
Universal Serial Bus (USB) port for additional
devices.
5
HDMI1/VGA
Simultaneous HDMI1/VGA output. Display local
video output and menu.

HIKVISION DS-7208HQHI-F2/N Specifications

General

Brand	HIKVISION
Model	DS-7208HQHI-F2/N
Category	DVR
Language	English
