Digital Video Recorder User Manual
258
Enhanced VCA Mode: For DS-7208/7216HUHI-F/N and DS-7200HUHI-F/S series DVR, the
enhanced VCA mode conflicts with the 2K/4K output and 4 MP/5 MP signal input. You can
enable or disable VCA mode.
Enable Enhanced VCA Mode
1) Check the checkbox to enable enhanced VCA mode.
2) Click Apply and the attention box pops up as below.

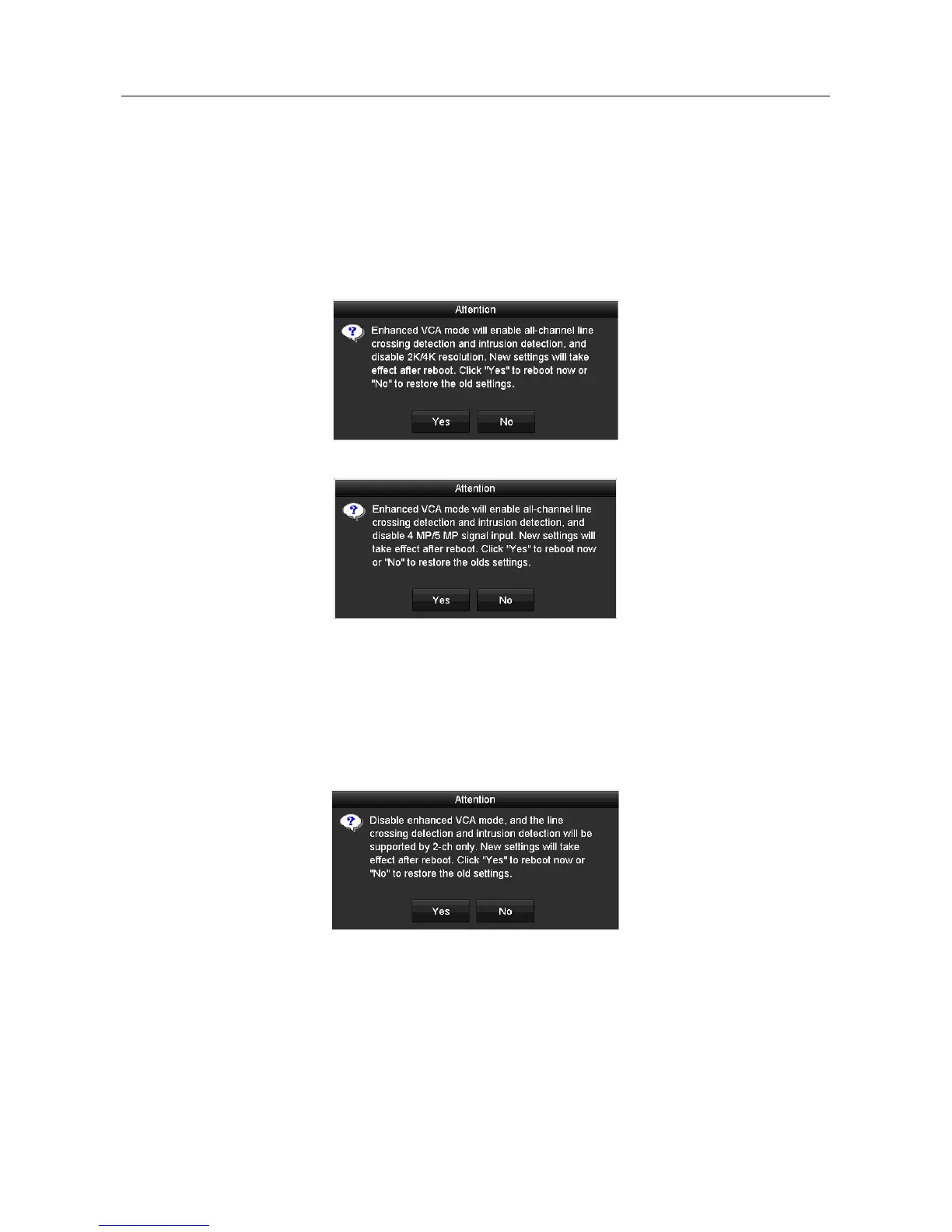

Figure 17-10 Enable Enhanced VCA Mode (1)
Figure 17-11 Enable Enhanced VCA Mode (2)
3) Click Yes to apply the function and reboot the device.
Disable Enhanced VCA Mode
1) Uncheck the checkbox to disable enhanced VCA mode.
2) Click Apply and the attention box pops up as below.
Figure 17-12 Disable Enhanced VCA Mode (1)
To Next Page
