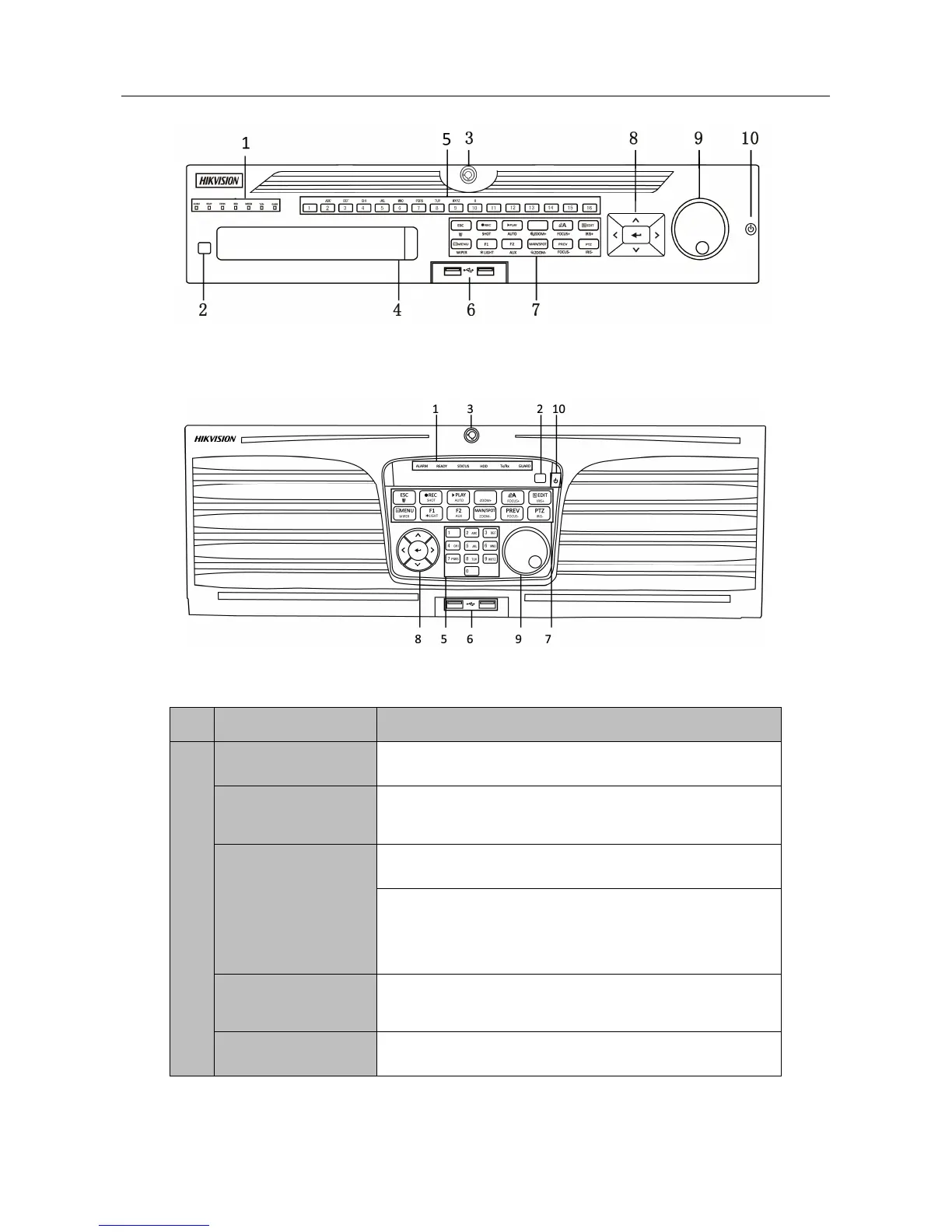

Figure 1-7 Front Panel of DS-9000HUHI-F8/N
Front Panel 8:
Figure 1-8 Front Panel of DS-9000HUHI-F16/N
Table 1-6 Description of Front Panel
No.
Name Function Description
1
ALARM
Turns red when a sensor alarm is detected.
READY
Turns blue, indicating that the DVR is functioning
properly.
STATUS
Turns blue when device is controlled by an IR remote.
Turns red when controlled by a keyboard and purple
when IR remote and keyboard is used at the same
time.
HDD
Flickers in red when data is being read from or written
to HDD.
MODEM
Flickers in blue when network connection is
