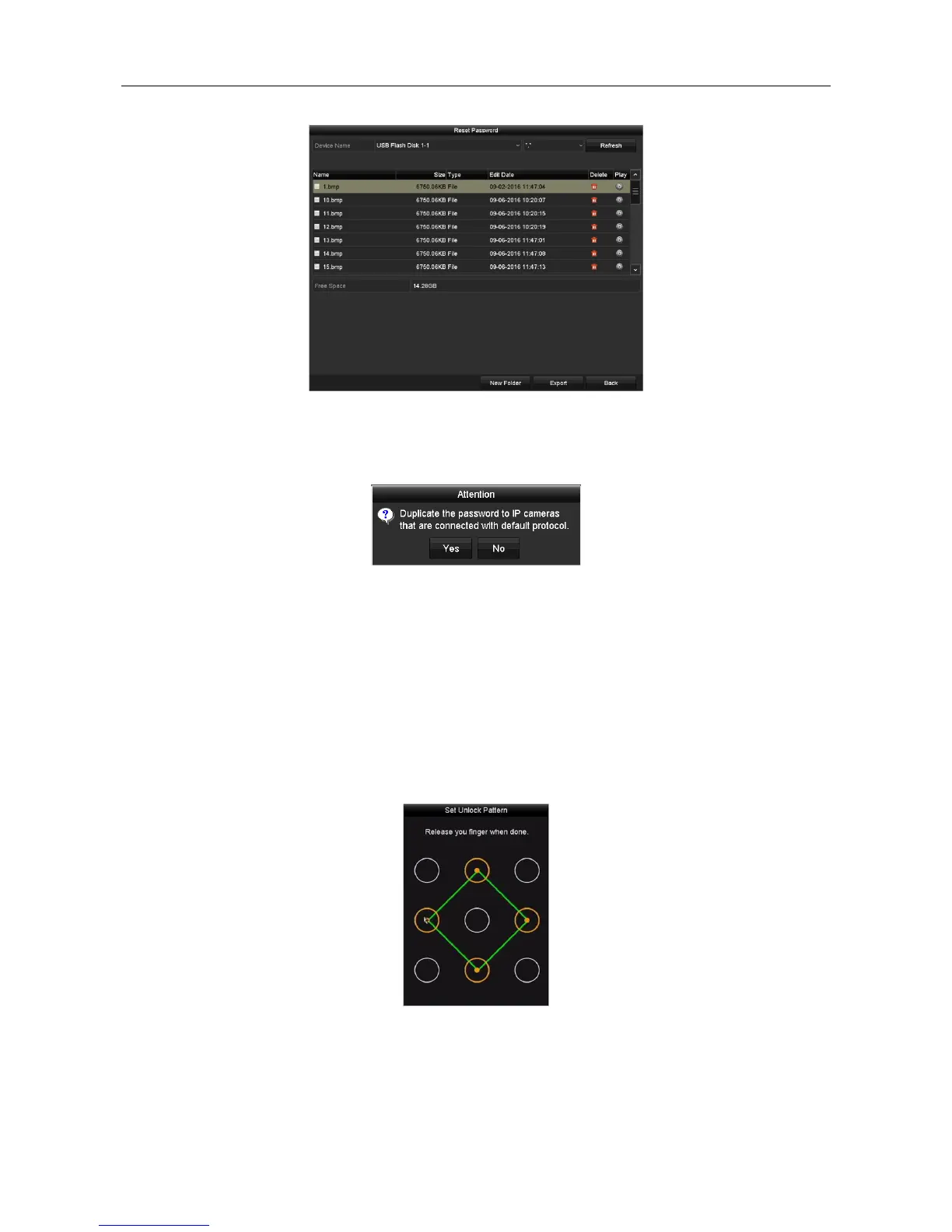

Digital Video Recorder Quick Start Guide
27
Figure 3-6 Export GUID
Step 5 After exporting GUID, the Attention box pops up as below. Click Yes to duplicate the
password or No to cancel it.
Figure 3-7 Duplicate the Password
3.4 Using the Unlock Pattern for Login
For the Admin user, you can configure the unlock pattern for device login.
After the device is activated, you can enter the following interface to configure the device unlock
pattern.
Step 1 Use the mouse to draw a pattern among the 9 dots on the screen. Release the mouse when
the pattern is done.
Figure 3-8 Draw the Pattern

Other manuals for HIKVISION DS-7216HGHI-F1

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7216HGHI-F1 and is the answer not in the manual?

HIKVISION DS-7216HGHI-F1 Specifications

General IconGeneral
Audio input1
BNC input ports16
Video input channels16 channels
USB 2.0 ports quantity2
DC voltage12 V
Power consumption (typical)20 W
Bit rate64 Kbit/s
InternalNo
Product colorBlack
Video streamingYes
Maximum frame rate30 fps
Audio formats supportedG.711 μ-law
Maximum video resolution1920 x 1080 pixels
Video compression formatsH.264, H.264+
Playback resolutions supported1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Number of users128 user(s)
Ethernet interface typeFast Ethernet
Supported network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interfaceSATA
Maximum HDD capacity6000 GB
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
Weight and Dimensions IconWeight and Dimensions
Depth222 mm
Width260 mm
Height45 mm
Weight1200 g
