HIKVISION DS-7216HGHI-F1 Quick Start Guide

Digital Video Recorder Quick Start Guide
7
Chapter1 Panels Description
1.1 Front Panel
The front panel vaires according to different models. Please refer to the actual product. The
following figures only take examples of several models.
 Front Panel 1

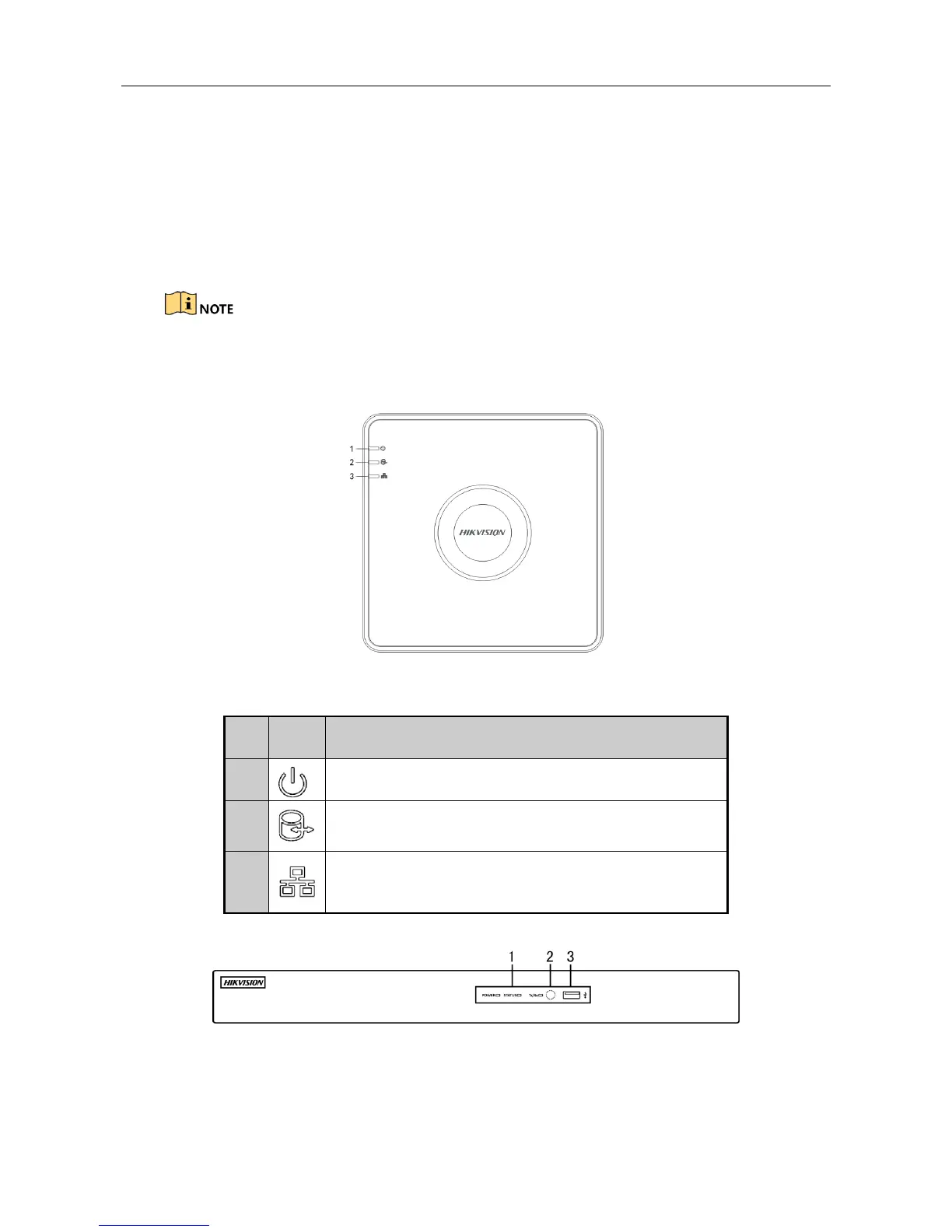

Figure 1-1 Front Panel 1
Table 1-1 Description of Front Panel 1
No.
Icon
Description
1
Turns red when DVR is powered up.
2
Turns red when data is being read from or written to
HDD.
3
Flickers blue when network connection is functioning
properly.
 Front Panel 2
Figure 1-2 Front Panel 2

HIKVISION DS-7216HGHI-F1 Specifications

General

Audio input	1
BNC input ports	16
Video input channels	16 channels
USB 2.0 ports quantity	2
DC voltage	12 V
Power consumption (typical)	20 W
Bit rate	64 Kbit/s
Internal	No
Product color	Black
Video streaming	Yes
Maximum frame rate	30 fps
Audio formats supported	G.711 μ-law
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	SATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	222 mm
Width	260 mm
Height	45 mm
Weight	1200 g
