Purpose
For DS-7200HUHI-F/S series DVR, you can view the analog signal input channels and types and the
connectable maximum IP camera number, and configure 5MP long distance transmission.
Step 1 Enter the Signal Input Status interface.
Menu > Camera > Signal Input Status

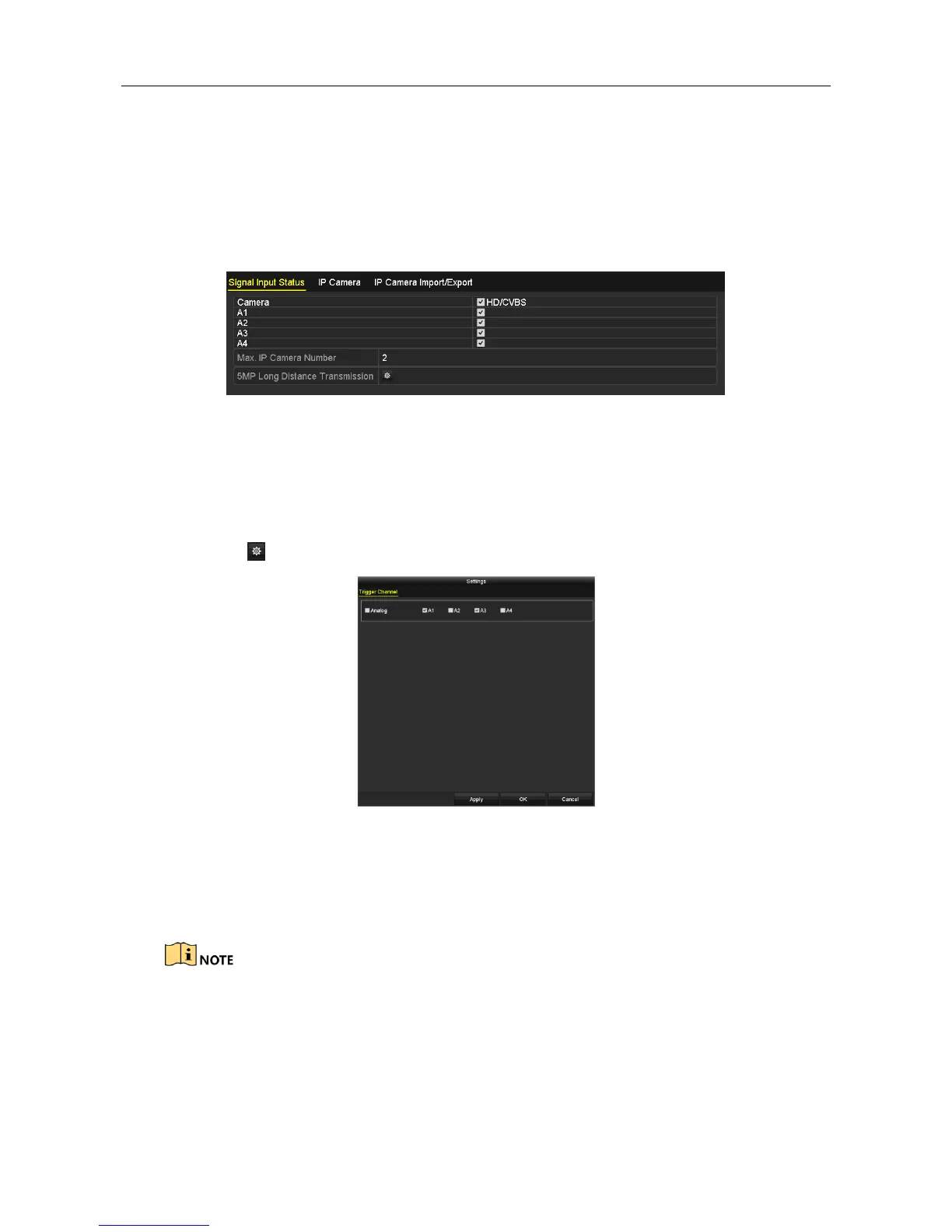

Figure 3-19 View Signal Input Type (2)
Step 2 View the analog signal input channels and types, and the connectable maximum IP camera
number.
Step 3 (Optional) You can enable 5 MP Long Distance Transmission for the Turbo HD and AHD
signal input. Follow the steps below to enable the function.
1) Click to enter the 5 MP Long Distance Transmission Settings interface.
Figure 3-20 5 MP Long Distance Transmission Settings
2) Check the checkbox(es) to enable 5 MP Long Distance Transmission of the selected
channel(s).
3) Click Apply to save the settings and OK to return to the Signal Input Status interface.

For -E series DVR, each two video channels are grouped in sequence, e.g., CH01 and CH02,
CH03 and CH04...; and each two channels in the same group must be connected with the
same type of video source (Turbo HD or CVBS).

HIKVISION DS-7216HGHI-F1 Specifications

General

Audio input	1
BNC input ports	16
Video input channels	16 channels
USB 2.0 ports quantity	2
DC voltage	12 V
Power consumption (typical)	20 W
Bit rate	64 Kbit/s
Internal	No
Product color	Black
Video streaming	Yes
Maximum frame rate	30 fps
Audio formats supported	G.711 μ-law
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	SATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	222 mm
Width	260 mm
Height	45 mm
Weight	1200 g
