HIKVISION DS-7216HQHI-K1 User Manual

Digital Video Recorder User Manual
122

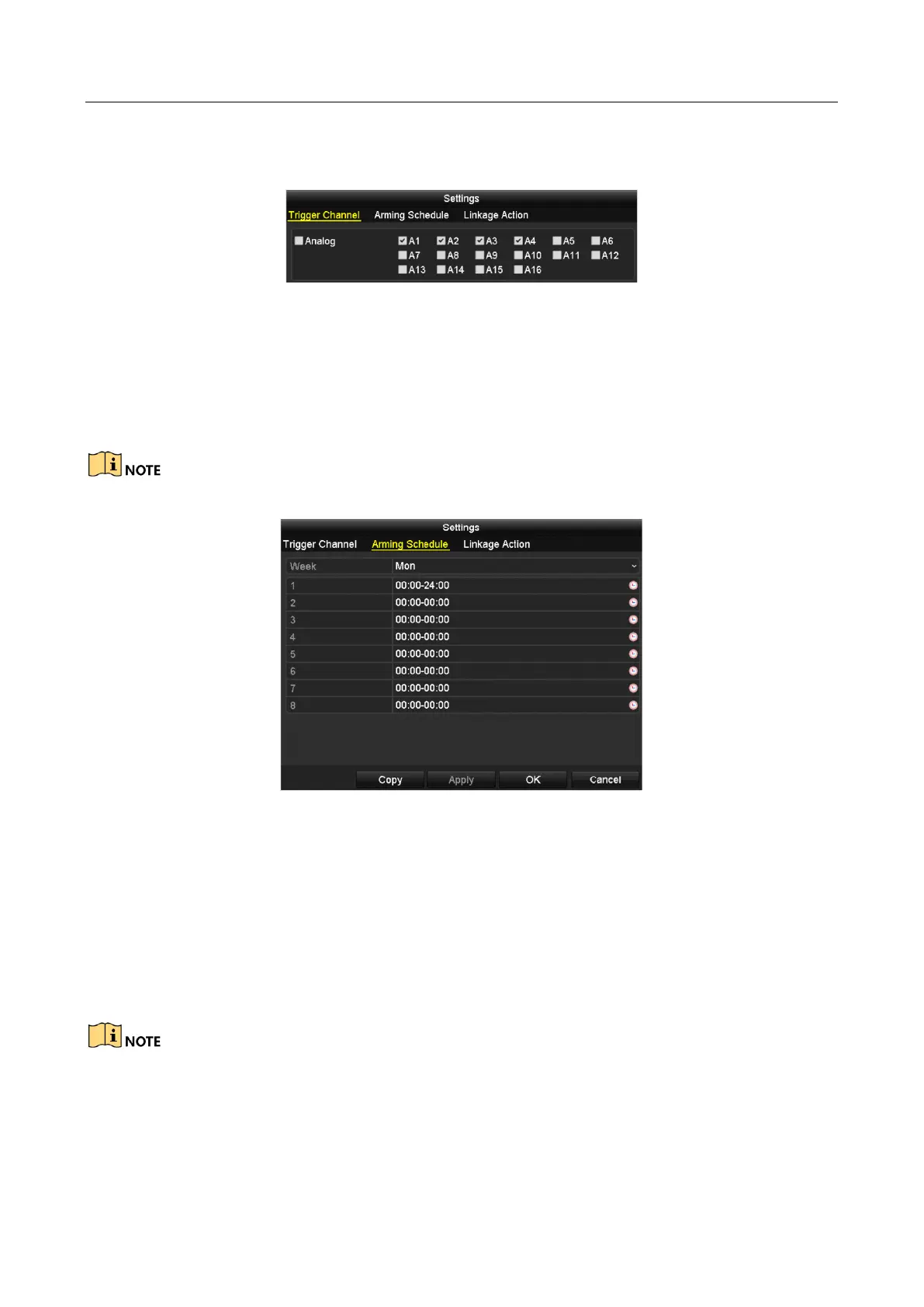

Step 4 Click Trigger Channel tab and select one or more channels which will start to record or
become full-screen monitoring when motion alarm is triggered.
Figure 8-3 Set Trigger Camera of Motion Detection
Step 5 Set arming schedule of the channel.
Select Arming Schedule tab to set the channel’s arming schedule.
Choose one day of a week and up to eight time periods can be set within each day. Or you
can click the Copy button to copy the time period settings to other day(s).
Time periods shall not be repeated or overlapped.
Figure 8-4 Set Arming Schedule of Motion Detection
Step 6 Click Linkage Action tab to set up alarm response actions of motion alarm (please refer to
Chapter 8.7 Setting Alarm Response Actions).
Repeat the above steps to set up arming schedule of other days of a week.
Click the OK button to complete the motion detection settings of the channel.
Step 7 If you want to set motion detection for another channel, repeat the above steps or just
copy the above settings to it.
You are not allowed to copy the “Trigger Channel” action.

HIKVISION DS-7216HQHI-K1 Specifications

General

Product color	Black
Channels quantity	16 channels
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768, 3840 x 2160, 2560 x 1440
Audio input	RCA
BNC input ports	16
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power consumption (typical)	25 W
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	315 x 242 x 45 mm
