Chapter 12 Network Settings
12.1 Configuring General Settings
Purpose
Network settings must be properly configured before you operate DVR over network.
Step 1 Go to Menu > Configuration > Network > General.

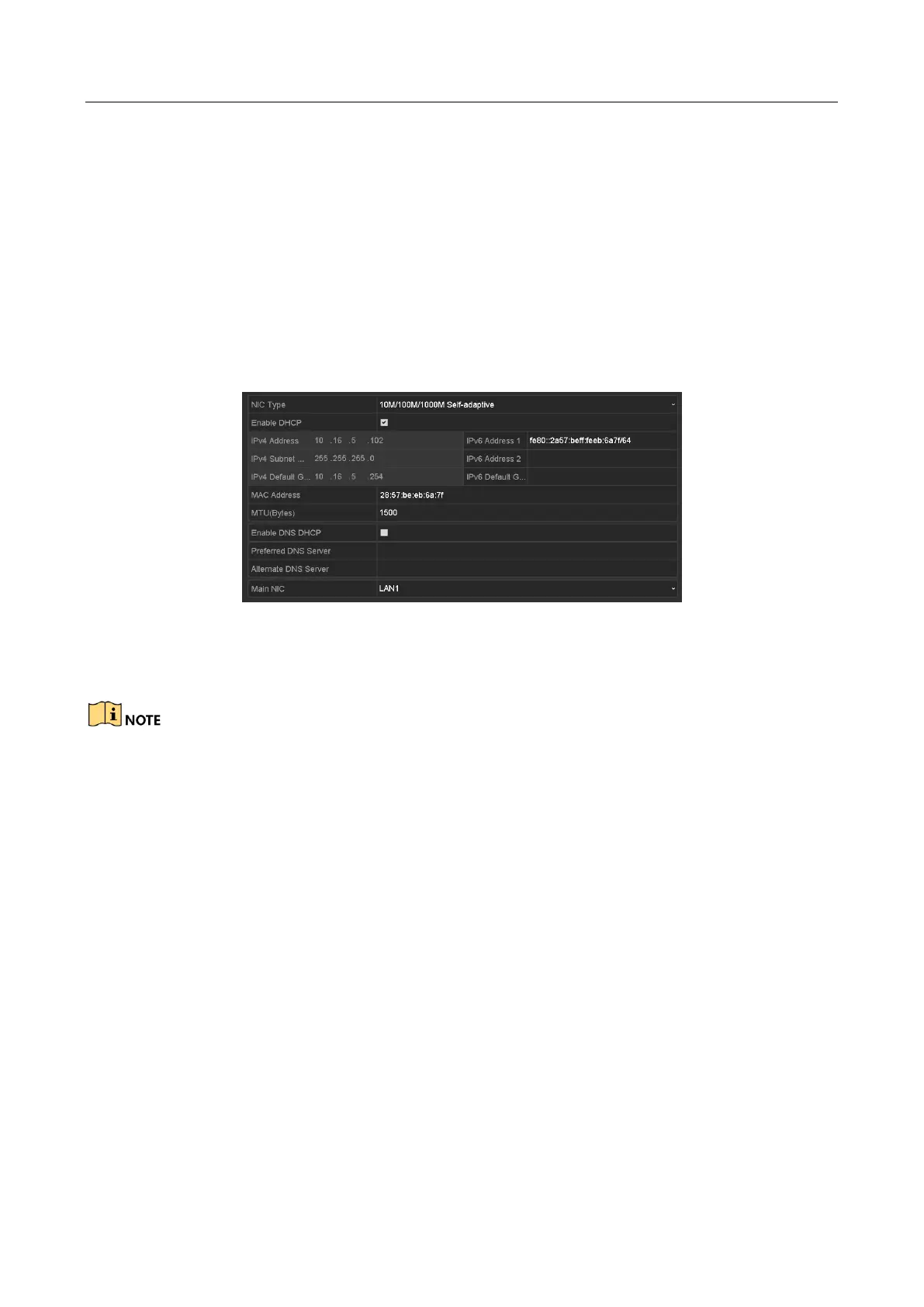

Figure 12-1 Network Settings Interface
Step 2 On the General Settings interface, you can configure the following parameters: NIC Type,
IPv4 Address, IPv4 Gateway, MTU, DNS Server and Main NIC.

The valid value of MTU is from 500 to 1500.

If the DHCP server is available, you can check the checkbox of Enable DHCP to
automatically obtain an IP address and other network settings from that server.

If DHCP is enabled, you can check the checkbox of Enable DNS DHCP or uncheck it and edit
the Preferred DNS Server and Alternate DNS Server.
Step 3 After having configured the general settings, click the Apply button to save the settings.
12.2 Configuring Advanced Settings
12.2.1 Configuring PPPoE Settings
Purpose
The DVR also allows access by Point-to-Point Protocol over Ethernet (PPPoE).
Step 1 Go to Menu > Configuration > Network > PPPoE.

HIKVISION DS-7216HQHI-K1 Specifications

General

Product color	Black
Channels quantity	16 channels
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768, 3840 x 2160, 2560 x 1440
Audio input	RCA
BNC input ports	16
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power consumption (typical)	25 W
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	315 x 242 x 45 mm
