HIKVISION DS-7216HQHI-K1 User Manual

Digital Video Recorder User Manual
86

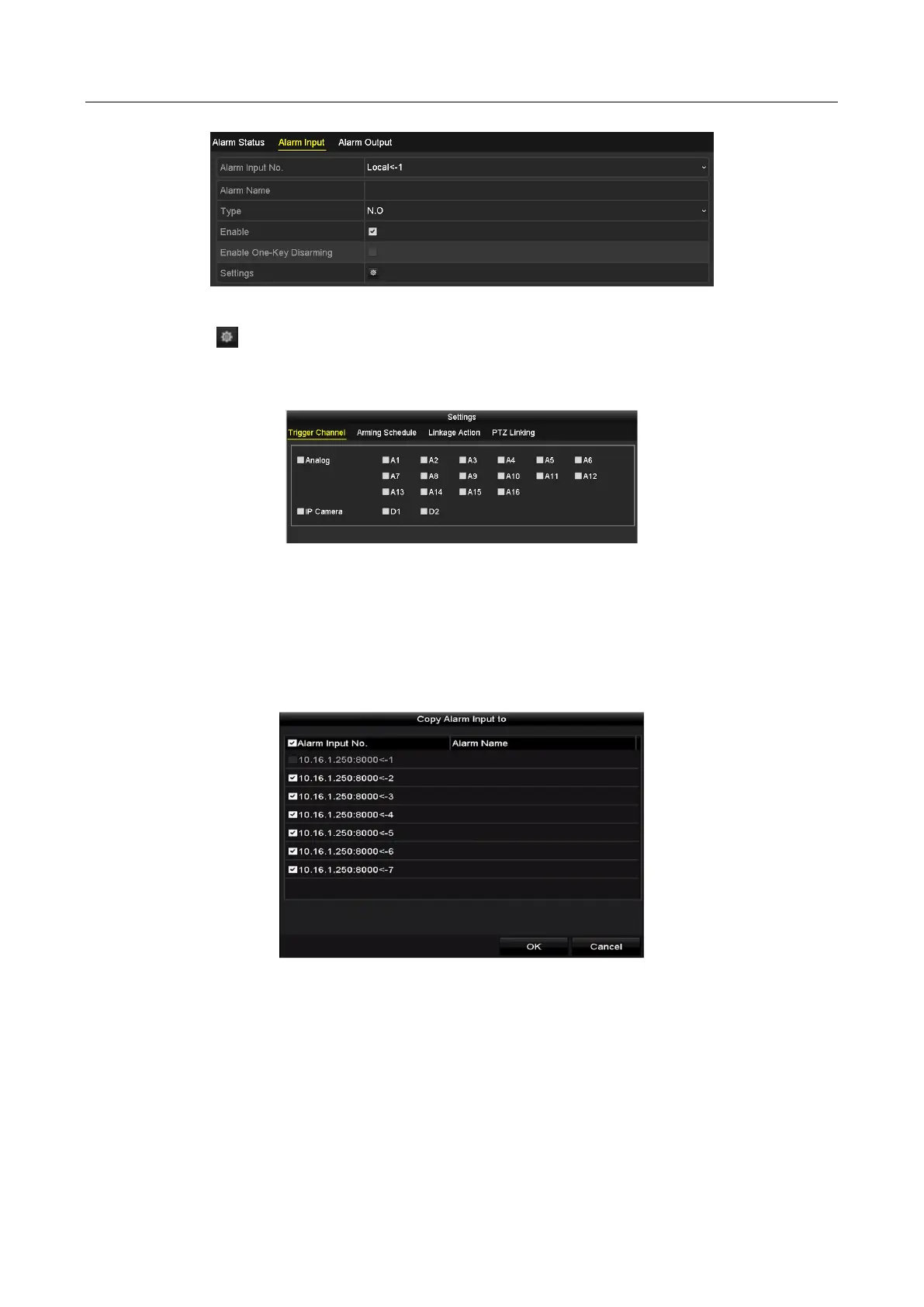

Figure 5-16 Enable Alarm
Step 6 Click the button after Settings to set the triggered channels, arming schedule, linkage
actions and PTZ linking. Refer to step 4 of Chapter 5.2 Configuring Recording Schedule for
detailed operations.
Figure 5-17 Alarm Handling
Step 7 Click Apply to save the settings.
Repeat the steps from 1 to 8 to configure other alarm input parameters.
If the settings can also be applied to other alarm inputs, click Copy and choose the alarm
input number.
Figure 5-18 Copy Alarm Input
5.5 Configuring Event Recording
Purpose
The event triggered recording can be configured through the menu. Then events include the
motion detection, alarm and VCA events (face detection/face capture, line crossing detection,

HIKVISION DS-7216HQHI-K1 Specifications

General

Product color	Black
Channels quantity	16 channels
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768, 3840 x 2160, 2560 x 1440
Audio input	RCA
BNC input ports	16
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power consumption (typical)	25 W
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	315 x 242 x 45 mm
