HIKVISION DS-7216HQHI-K1 User Manual

Digital Video Recorder User Manual
131
Step 1 Go to Menu > Configuration > Exceptions.

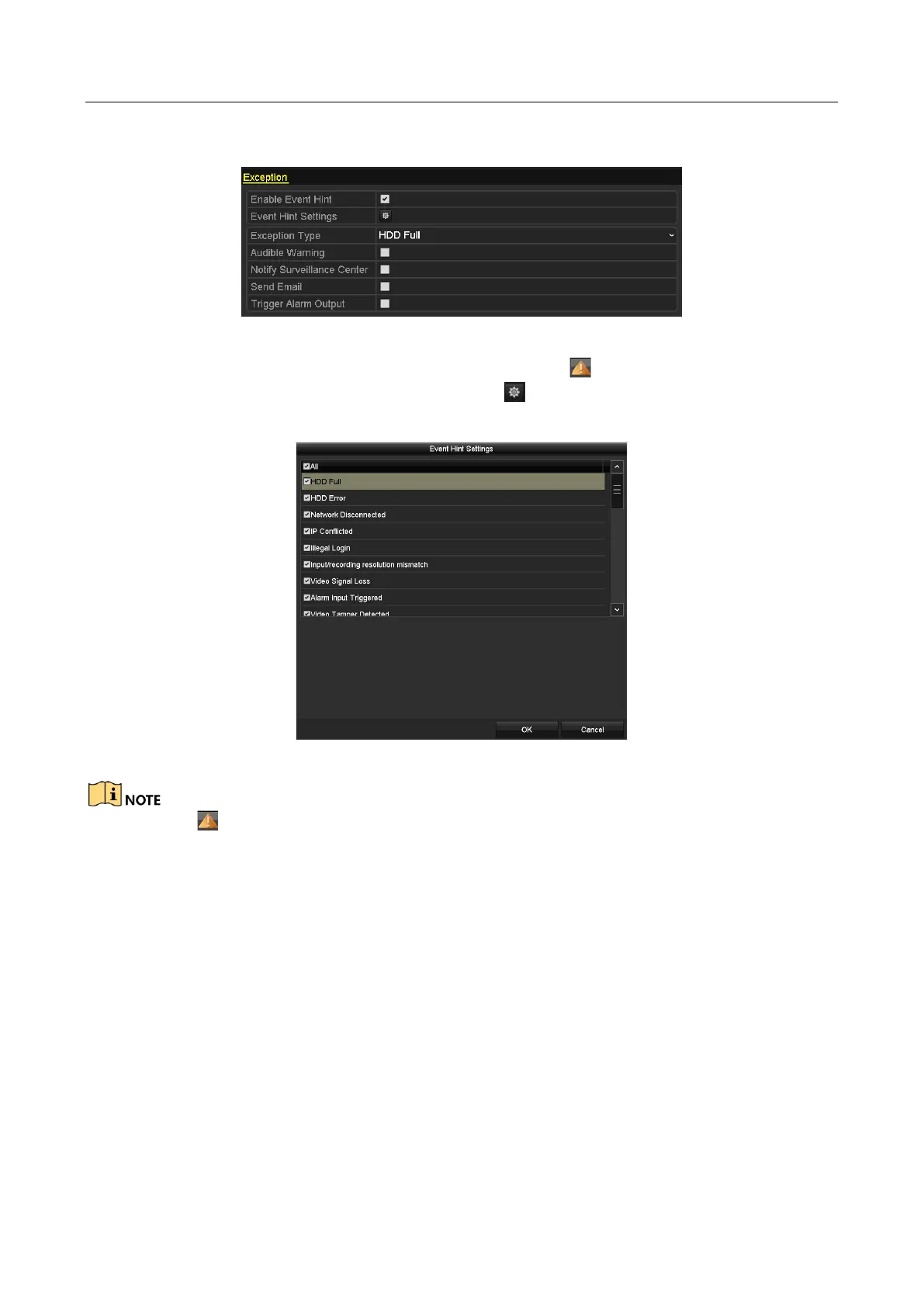

Figure 8-16 Exception Settings Interface
Step 2 Check the checkbox of Enable Event Hint to display the (Event/Exception icon) when
an exceptional event occurs. And click the icon to select the detailed event hint for
display.
Figure 8-17 Event Hint Settings
Click the icon appears in the live view interface, and you can view the detailed information of
the exceptional event. Click the button Set, and then you can select the detailed event hint for
display.

HIKVISION DS-7216HQHI-K1 Specifications

General

Product color	Black
Channels quantity	16 channels
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768, 3840 x 2160, 2560 x 1440
Audio input	RCA
BNC input ports	16
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power consumption (typical)	25 W
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	315 x 242 x 45 mm
